30 AWG Kynar Red Wire R-30R-0050 (150 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012554 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 50 ft (15.24 meters) |
| Dimensions | 1.65 in x 1.65 in x 0.77 in |
| Part Number | R-30R-0050 |

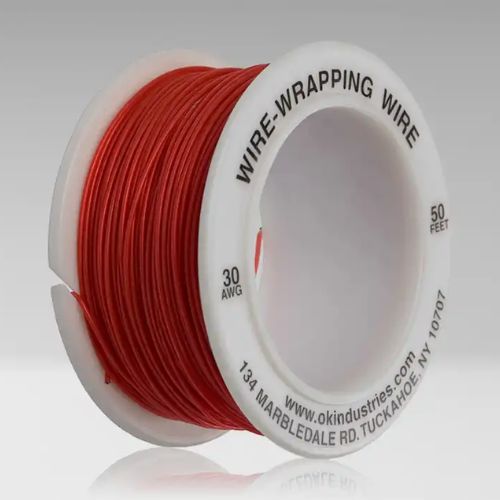

30 AWG Kynar Red Wire
Description:

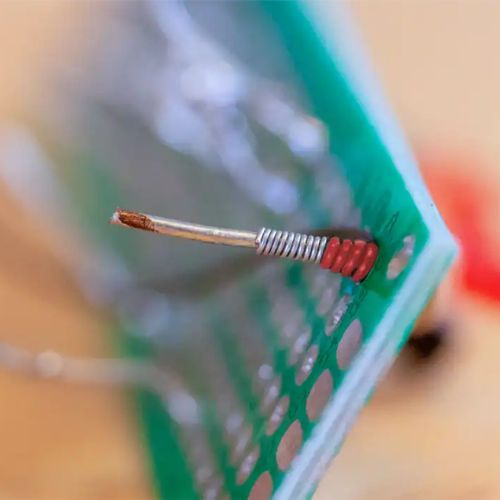

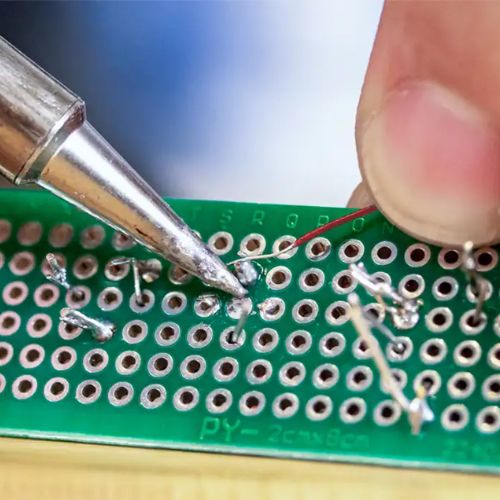

Kynar wire is widely used in applications that demand flexibility, strength, and low weight, making it an excellent choice for wire wrapping, power supplies, medical equipment, and aerospace systems. Its lightweight design and smaller diameter also make it highly suitable for circuit board prototyping.
The Kynar insulation provides superior mechanical properties across a broad temperature range and delivers exceptional resistance to a wide variety of chemicals, including most inorganic and organic acids, bases, alcohols, and halogenated solvents, as well as aliphatic and aromatic hydrocarbons. These characteristics make Kynar wire a reliable solution for even the harshest environmental conditions.
Features:
⦿ OHFC silver-plated copper conductor for outstanding conductivity and flexibility
⦿ Kynar insulation rated up to 105 °C with excellent abrasion resistance
⦿ UL 1423 compliant (meets or exceeds standards)
Download PDF Spec Sheet
