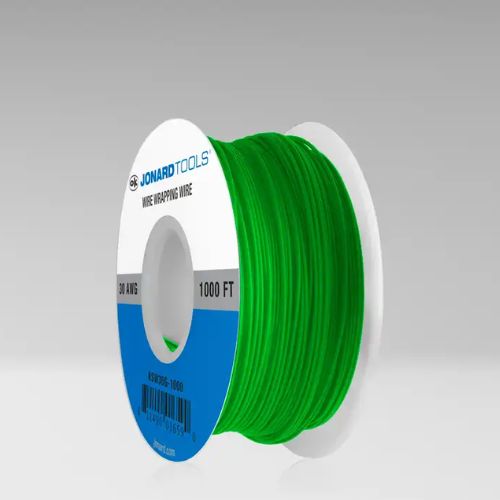

30 AWG Kynar Green Wire CSW Low Strip Force KSW30G-1000 (1000 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490016590 |
| Insulation Type | Low Strip Force Kynar |
| Insulation Thickness | 0.005" |
| Wire Gauge | 30 AWG |
| Overall Diameter | 0.020" |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 1000ft |
| Dimensions | 2.85 in x 2.85 in x 2.4 in |
| Part Number | KSW30G-1000 |
30 AWG Kynar Green Wire CSW Low Strip Force
Description:
Typically used where flexibility, strength, and low weight are essential, Kynar wire is ideal for wire wrap, power supply, medical, and aerospace applications. Its lightweight construction and smaller overall diameter also make it a popular choice for circuit board prototyping.
Kynar insulation offers outstanding mechanical properties across a wide temperature range and excellent resistance to a broad array of chemicals—including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic and aromatic hydrocarbons. These qualities make Kynar wire an excellent option for use in even the most demanding environments.
Features:
• Low strip-force Kynar insulation — processed for reduced strip force, compatible with CSW bits and sleeves (RoHS Compliant)
• OHFC (Oxygen-Free High Conductivity) silver-plated copper conductor — delivers exceptional electrical conductivity and flexibility
• High temperature resistance — withstands temperatures up to 105°C with excellent abrasion resistance
• Complies with or exceeds UL 1423 standards
Download PDF Spec Sheet
