30 AWG Kynar Blue Wire R-30B-0050 (150 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012738 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 50 ft (15.24 meters) |
| Dimensions | 1 in x 1 in x 0 in (2.54 cm x 2.54 cm x 0 cm) |
| Part Number | R-30B-0050 |

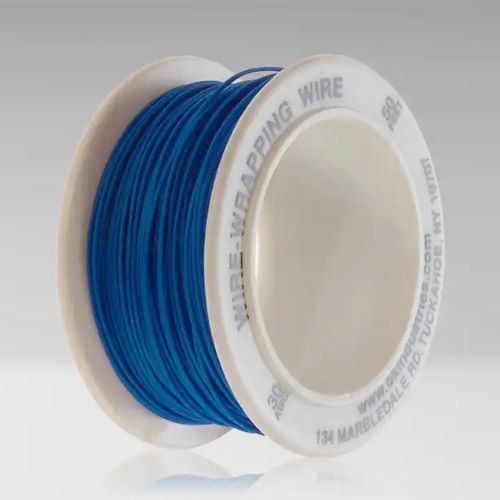

30 AWG Kynar Blue Wire
Description:

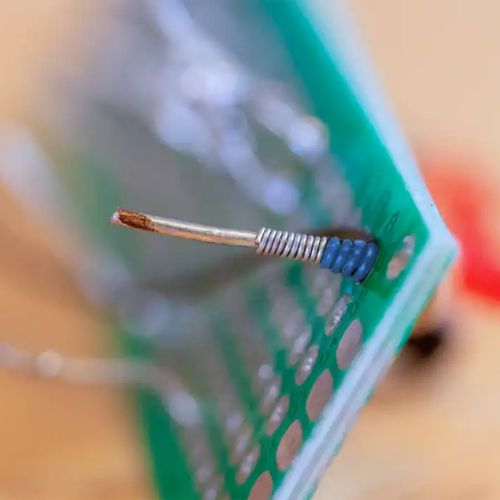

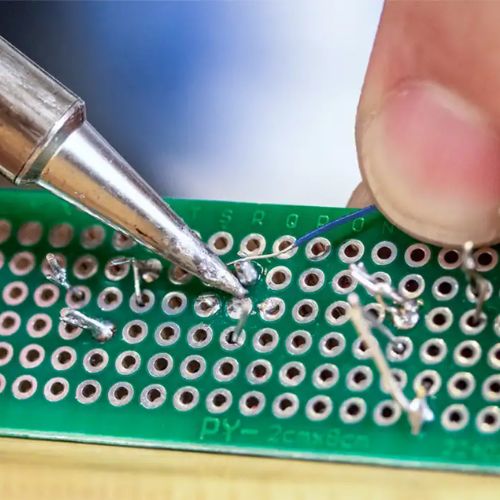

Kynar wire is engineered for applications that demand flexibility, strength, and low weight, making it ideal for wire wrap, power supplies, medical devices, and aerospace systems. Its lightweight design and smaller diameter also make it a preferred choice for circuit board prototyping. Kynar insulation provides excellent mechanical performance across a wide temperature range and resists a broad range of chemicals—including inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic or aromatic hydrocarbons. These properties make Kynar wire a dependable solution for even the harshest environments.
Features:
⦿ OHFC (oxygen-free high conductivity) silver-plated copper conductor delivers outstanding electrical conductivity and flexibility
⦿ Kynar insulation with high-temperature resistance (up to 105°C) and superior abrasion resistance
⦿ Meets or exceeds UL 1423 standards
Download PDF Spec Sheet
