30 AWG Kynar Blue Wire CSW Low Strip Force KSW30B-0100 (200 FT)

Product Information

Specification

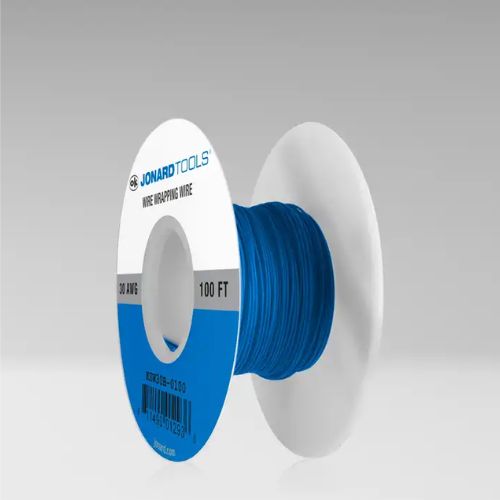

30 AWG Kynar Blue Wire CSW Low Strip Force

Description:

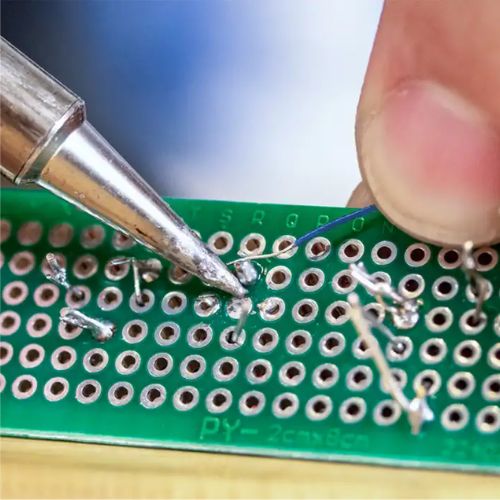

Kynar wire is typically used in applications that require flexibility, strength, and low weight, such as wire wrapping, power supplies, medical devices, and aerospace systems. Its light weight and small overall diameter also make it ideal for circuit board prototyping. Kynar insulation provides excellent mechanical performance across a wide temperature range and offers outstanding resistance to a broad variety of chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These qualities make Kynar wire a reliable choice even in the harshest environmental conditions.

Features:

• Low strip-force Kynar insulation — specially processed for reduced strip force; compatible with CSW bits and sleeves (RoHS compliant)

• OHFC (Oxygen-Free High Conductivity) silver-plated copper conductor — offers exceptional electrical conductivity and flexibility

• Kynar insulation — provides high temperature resistance (up to 105°C) and excellent abrasion resistance

• Meets or exceeds UL 1423 standards
