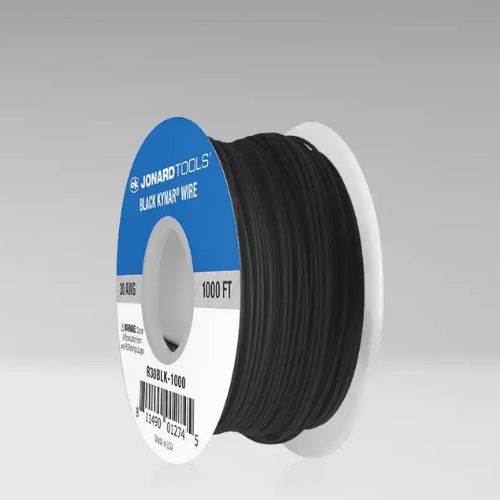

30 AWG Kynar Black Wire R30BLK-1000 (1000 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012745 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 30 AWG (0.25 mm) |
| Overall Diameter | 0.020" (0.50 mm) |
| Standards | UL 1423 |
| Voltage | Not Rated |
| Reel Length | 1000 ft. (304.8 meters) |
| Dimensions | 2.85 in x 2.85 in x 2.4 in |
| Part Number | R30BLK-1000 |
30 AWG Kynar Black Wire
Description:

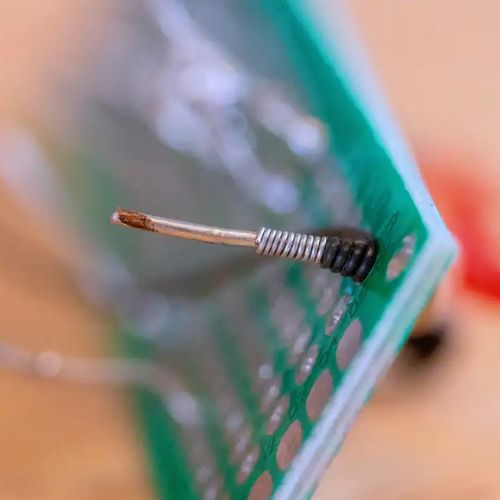

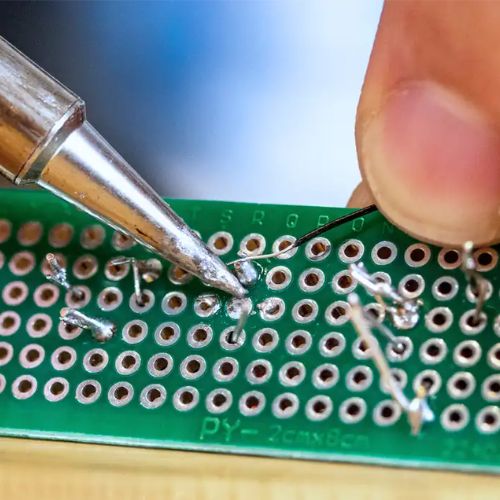

Kynar wire is commonly used where flexibility, strength, and low weight are essential, making it ideal for wire wrap, power supplies, medical devices, and aerospace applications. Its lightweight design and small diameter also make it a preferred choice for circuit board prototyping. The Kynar® insulation delivers excellent mechanical performance across a wide temperature range and is highly resistant to chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and aliphatic or aromatic hydrocarbons. These properties make Kynar® wire a reliable option for even the harshest environments.
Features:
⦿ OHFC (oxygen-free high conductivity) silver-plated copper conductor for superior electrical conductivity and flexibility
⦿ Kynar insulation offering high-temperature resistance (up to 105°C) and excellent abrasion resistance
⦿ Complies with or exceeds UL 1423 standards
Download PDF Spec Sheet
