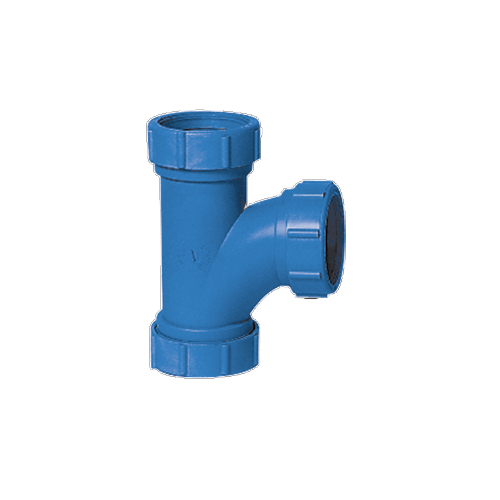

3" X 2" Mechanical Joint PVDF Chemical Flame Retardant Reducer Sanitary Tee W2032P

Product Information

Specification

3" X 2" Mechanical Joint PVDF Chemical Flame Retardant Reducer Sanitary Tee

Description

Plenumline Mechanical Joint Acid Waste Systems easily displace costly and difficult-to-install glass and metal systems. With Plenumline, time-consuming methods associated with conventional heavy and brittle systems are replaced by a time-proven mechanical joint that takes only 30 seconds to complete. Once the Plenumline nut is locked in place, the end-user is assured of many years of trouble-free service. In addition, mechanical joint systems can easily be dismantled and reused, making Plenumline ideal for modular designs and future expansions.

Features

• Ideally suited to plenum applications.
• 30-second joint installation time.
• flame-retardant PVDF, which has an operating temperature range from -40°F to 285°F. With this high upper temperature limit, Plenumline systems can be flushed with boiling water.
• All-plastic construction eliminates galvanic action, electrolysis, and corrosion in the joint.
• Easy to install by using simple, inexpensive tools. Mechanical joints are mastered by plumbers in minutes; no preheating is required to install the new blue elastolive seal.
• System modifications during installation can be performed without damaging fittings.
• High-quality pipe and fittings are matched to simplify installation and extend long-term reliability.
