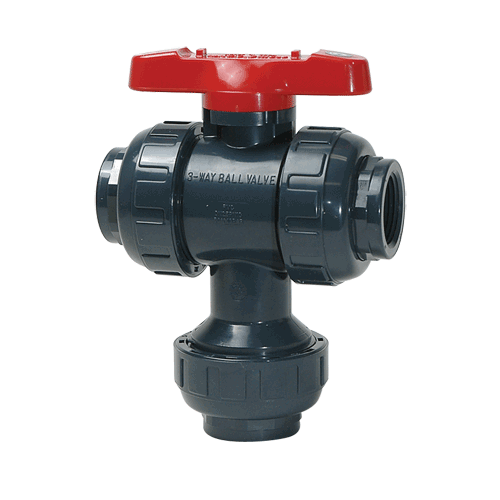

3" Type-23 FKM Seals With PTFE Seats Three-way PVC Ball Valve 2514030

Product Information

Specification

3" Type-23 FKM Seals With PTFE Seats Three-way PVC Ball Valve 2514030

Description

Type-23 Multiport plastic ball valves are three-way ball valves with True Union design. The use of a Multiport ball valve simplifies piping and eliminates the need for an additional valve and Tee fitting. An L ported ball valve permits flow from the bottom entry to either the left or right ports or to an OFF position. An optional Tee ported ball allows simultaneous left and right flow Versatile ball valves with two branches and one leg. Fluid flow direction is governed by an interchangeable ball in the center of the valve. Because this ball can be swapped out to offer a number of different flow patterns, the Type-23 Multiport valve is customizable to specific applications. Similar to other ball valves, the Type-23 Multiport valve has a low pressure drop and works best in applications with zero to very low concentrations of suspended solids. True Union ball valves can be lifted from the line, without having to move the piping, simply by loosening the two union nuts. The valves can be disassembled, and parts may be replaced. The Type-23 Multiport valve may be pneumatically or electrically actuated.

Features

• Pressure ratings up to 150 psi (PVC at 70o F)
• All ball types interchangeable
• Full vacuum rated, all sizes
• Capable of blocking flow in a variety of directions
• PTFE seats with elastomer backing cushion for low operating torques and compensation for wear
• Large bore sizes for low pressure drops
• NSF-61 certified : 1/2" 4" PVC bodied with EPDM or FKM seals
