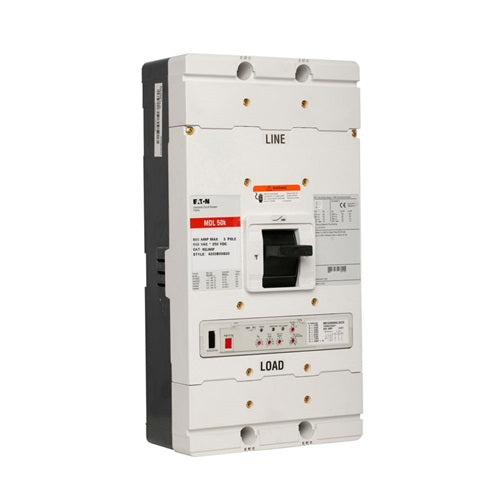

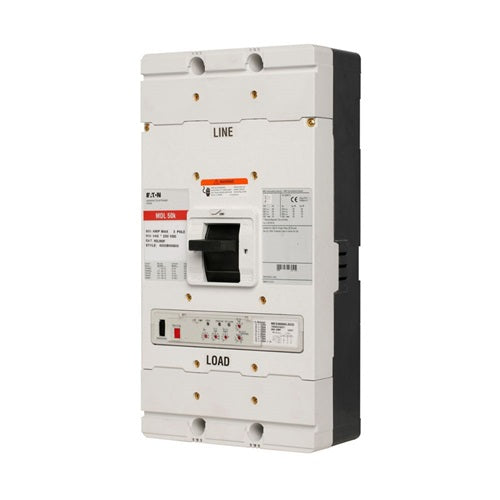

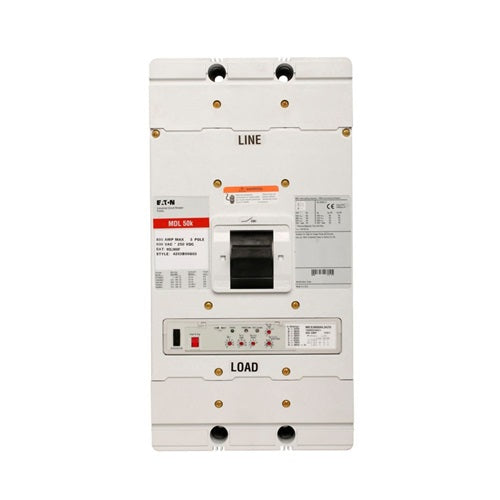

3 Pole Series C M-frame Molded Case Circuit Breaker MDL3800F
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Eaton Series C molded case circuit breaker frame, MDL-frame, MDL, Frame only, Fixed thermal, Fixed magnetic trip type, Three-pole, 800A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 50 kAIC at 480 Vac, 50/60 Hz.
Specifications :
| Amps | 800 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 65KA 240VAC |
| Breaker Interrupt Rating 2 | 50KA 480VAC |
| Breaker Interrupt Rating 3 | 25KA 600VAC |
| Breaker Line Side Term Method | Busbar (No Lugs) |
| Breaker Load Side Term Method | Busbar (No Lugs) |
| Category | Circuit Breakers |
| Category Standards | UL Listed |
| Circuit Breaker Type | Series C Molded Case Circuit Breaker |
| Frame | M-Frame |
| Height | 8.3 |
| In Stock | Yes |
| Length | 18.6 |
| Manufacturer | Eaton |
| Maximum Interrupt Rating | 25KA 600VAC |
| Number of Poles | 3 Pole |
| Product Description | 600Volt, 800Amp, 3-Pole |
| Trip Type | Frame Only |
| UNSPSC | 39121616 |
| UPC | 782114350577 |
| Volts | 600V |
| Width | 11.1 |
Features :
• Trip Mechanism: Typically features thermal-magnetic trip units, offering both overload and short-circuit protection.
• Adjustable Settings: May include adjustable trip settings to cater to different load requirements.
• Compact Design: The molded case allows for efficient use of space in electrical panels.
• Mounting Options: Designed for easy installation in panel boards or as part of switchgear assemblies.
• Safety and Compliance: Meets various industry standards for safety and performance, making it suitable for industrial and commercial applications.
Applications
• Ideal for use in electrical distribution systems, protecting motors, transformers, and large machinery.
• Common in industrial settings, commercial buildings, and facilities with high power requirements.
Download PDF Spec Sheet
