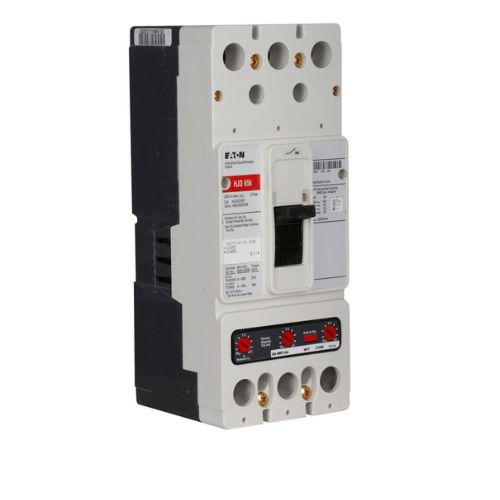

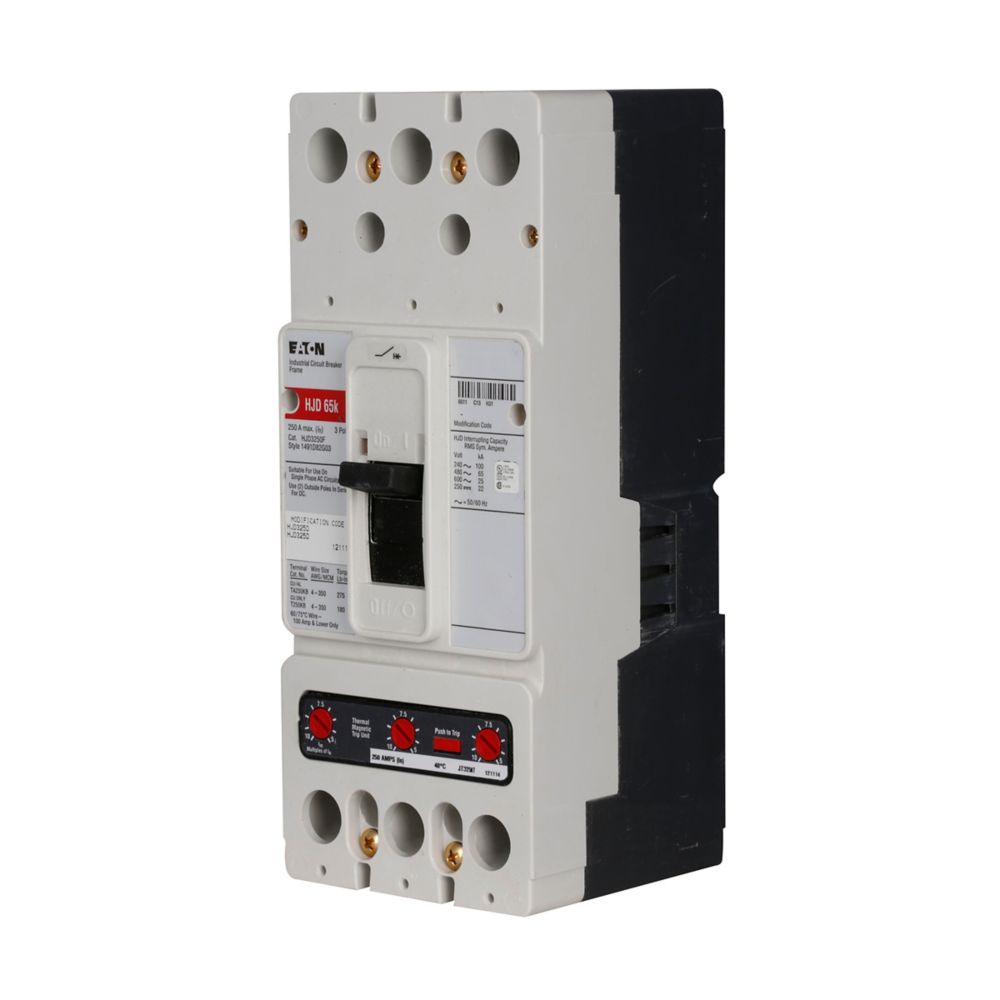

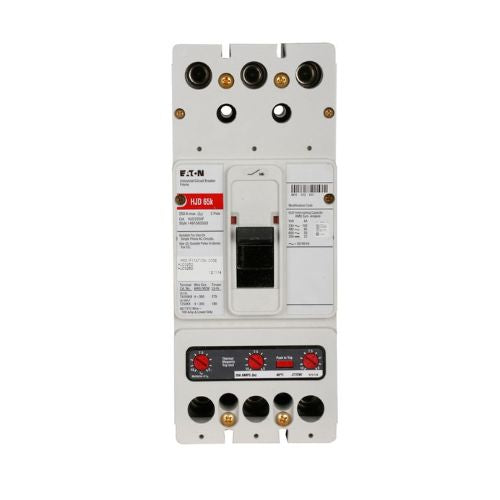

3 Pole Series C J-frame Molded Case Circuit Breaker JD3125
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
Eaton Series C complete molded case circuit breaker, J-frame, JD, Complete breaker, Fixed thermal, Fixed magnetic trip, Three-pole, 125 A, 600 Vac, 250 Vdc, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, Aluminum, Line and load, 50/60 Hz.
Specifications :
| Amps | 125 Amp |
|---|---|
| Breaker Interrupt Rating 1 | 65KA 240VAC |
| Breaker Interrupt Rating 2 | 35KA 480VAC |
| Breaker Interrupt Rating 3 | 18KA 600VAC |
| Breaker Line Side Term Method | Lugs |
| Breaker Load Side Term Method | Lugs |
| Category | Circuit Breakers |
| Category Standards | UL Listed |
| Circuit Breaker Type | Series C Molded Case Circuit Breaker |
| Frame | J-Frame |
| Height | 6.2 |
| In Stock | Yes |
| Length | 12.2 |
| Manufacturer | Eaton |
| Maximum Interrupt Rating | 18KA 600VAC |
| Number of Poles | 3 Pole |
| Product Description | 600Volt, 125Amp, 3-Pole |
| Trip Type | Thermal Magnetic |
| UNSPSC | 39121616 |
| UPC | 786679013540 |
| Volts | 600V |
| Width | 6.9 |
Features :
• All Eaton's J-Frame circuit breakers are HACR rated
• J-Frame circuit breakers are available as individual components (frame, trip unit, terminals), or factory assembled complete breakers
• J-Frame circuit breakers with non-interchangeable trip units are suitable for reverse feed use
Download PDF Spec Sheet
