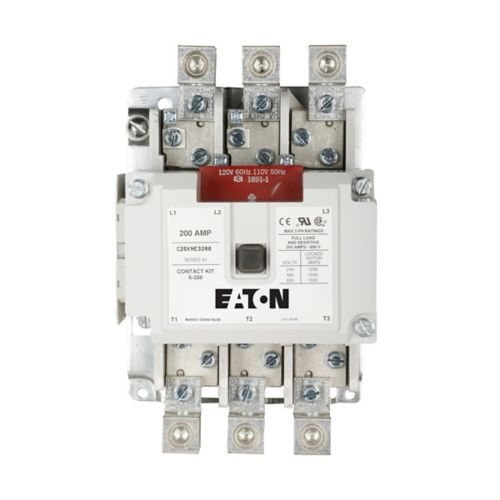

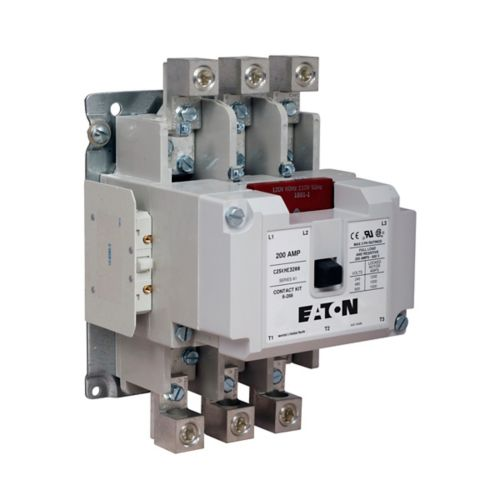

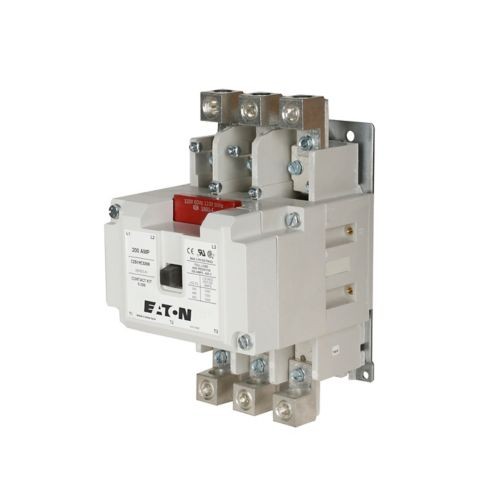

3 Pole 110-120VAC Coil 200A Non-Reversing Definite Purpose Contactor C25KNE3200A
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Amperage Rating | 200A |
| Number of poles | Three-pole |
| Type | Non-reversing |
| Coil | 110-120 Vac, 50/60 Hz |
| Contact configuration |
1 NO, 1 NC
|
| Enclosure | Open with metal mounting plate |
| Frame size | 15-50 A, two-pole and three-pole |
| Inductive full load | 200 A |
| Model | Contactor |
| Resistive load | 200 A |
| Size | 200 and 300A, three-pole |
| Terminals | Box lugs (posidrive setscrew) |
| Connection | Quick |
| Product Length/Depth | 7.25 in |
| Product Height | 9.11 in |
| Product Width | 7.05 in |
The 200A Definite Purpose Contactor is a heavy-duty three-pole, non-reversing contactor designed for reliable switching and control of high-current electrical loads. Featuring a 110-120VAC coil voltage with 50/60Hz operation, this contactor is suitable for HVAC, refrigeration, industrial equipment, and motor control applications. The open type design with a metal mounting plate allows for easy installation, while the box lugs with Posidrive setscrews provide secure and dependable wire connections. Built for durability and consistent performance, this contactor is an excellent choice for demanding power control applications.
Features :
• 200A Current Rating for high-power switching applications
• Three-Pole, Non-Reversing Configuration for reliable motor and load control
• 110-120VAC Coil Voltage with 50/60Hz frequency compatibility
• Open Construction with Metal Mounting Plate for flexible installation
• Box Lugs with Posidrive Setscrews for secure wire termination
• Designed for HVAC, refrigeration, industrial machinery, and commercial equipment
• Provides reliable operation with long service life
• Suitable for heavy-duty electrical control applications
