3 Meters Slack Storage Fiber Transition Housings FTH-602 No adapters Hex Security Screw FTH-602-U1000

Product Information

Specification

About:

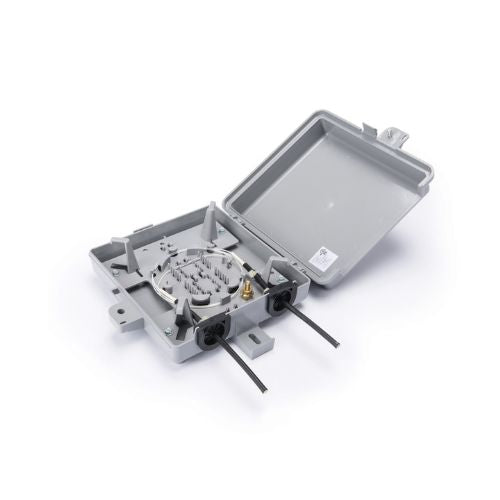

Corning fiber transition housing (FTH) provides an optical demarcation and interconnection point for fiber-to-thepremises (FTTP) applications. Suitable for indoor or outdoor locations, the FTH provides physical protection for the transition between provider and customer, and facilitates system testing.

The housings are molded from an engineering grade thermoplastic selected to withstand harsh outdoor environments. These housings may be installed on a wall or secured to a vertical conduit. Unauthorized access is deterred by the security screw latch. For added security, a lock may be installed on the integrated locking hasp.

Fiber entering and exiting the housing may be secured using the internal lances with the tie wraps. Slack cable is held neatly and securely using the backplate with integrated slack routing/management guides. The backplate also incorporates mounting clips for fusion or mechanical splices.

Specifications :

Product Number : FTH-602-U1000
Application : Network Interface Devices (NIDs)
Mounting Type : Wall-Mountable
Product Type : NID
RoHS : Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings : UL Listed to United States and Canadian safety standards
Design and Test Criteria : Tested to Telcordia standards
Temperature Range, Storage : -10 °C  to  60 °C (14 °F  to  140 °F)
Housing Color : Grey
Housing Material : Thermoplastic
Ground Configuration : Ground Post
Security Fasteners : Standard 3/8-in hex screw
Height : 8.5 in
Width : 7.8 in
Depth : 2.5 in

Features :

• Supports up to 1 to 6 fusion or mechanical splices: Accommodates up to 6 drop connections

• Equipped with a ground post: Allows connection for tracer wire

• Holds 3 meters of Clearcurve fiber: Provides slack storage for minor repairs and testing

• Small footprint: Can be mounted indoors or outdoors where space is limited

• Secure, weather-resistant housing: Protects fiber and connections for long life
