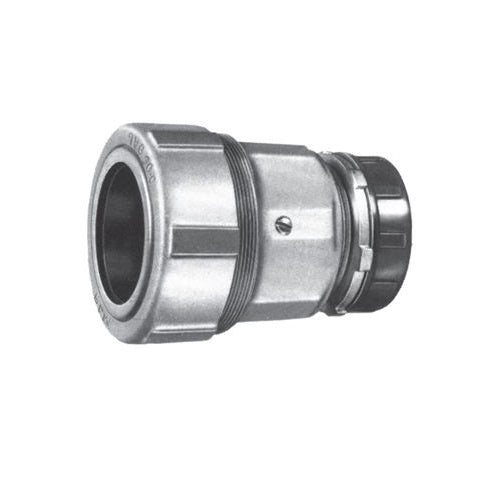

3" JAG Fittings For Interlocked Armored Cable MC Connector JAG31130

Product Information

Specification

About :

JAG fittings are essential components used in conjunction with interlocked armored cables to ensure secure and reliable connections. These fittings are designed to provide mechanical protection, electrical continuity, and environmental sealing for cables in various industrial and hazardous locations. Made from high-quality materials such as brass, stainless steel, or aluminum, providing robust protection against physical damage.

Specifications :

Diameter Over Jacket (A) : 2.95 Min To 3.11 Max.
Max Cable Core Diameter (B) : 3.11
Conduit Size (C) : 3
Fitting O.D (D) : 5-3/32
Length Overall (E) : 5-3/4
Drill Clearance Hole Diameter : 3.55
Part Number : JAG31130

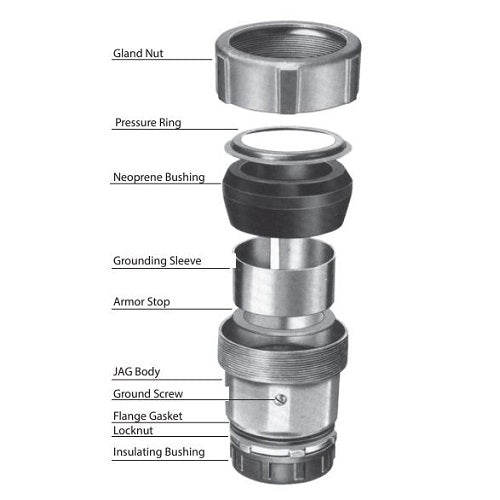

Features :

• Slip-on design with no disassembly for easy installation

• Neoprene bushing for raintight seal

• Flange gasket prevents moisture penetration through threads

• Fits broad range – .351-4.62 cable O.D

• Determine satisfactory fit by checking cable dimensions A and B
