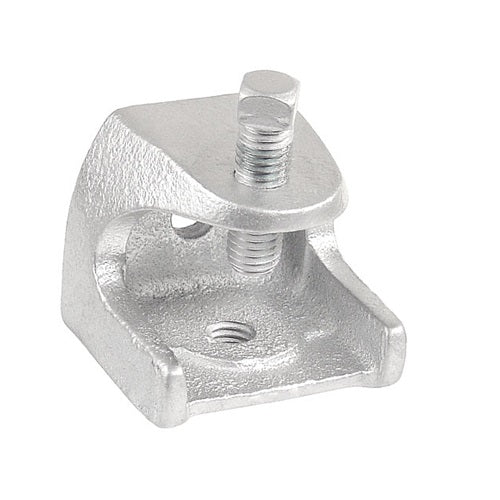

3/8-16 Iron Beam Clamp MBC-3816-SS (Pack of 25)

Product Information

Specification

Also Know As :

Stainless Steel Malleable Iron Beam Clamp 3/8-16 Thread 316Ss. This part Number MBC-3816-SS.

About :

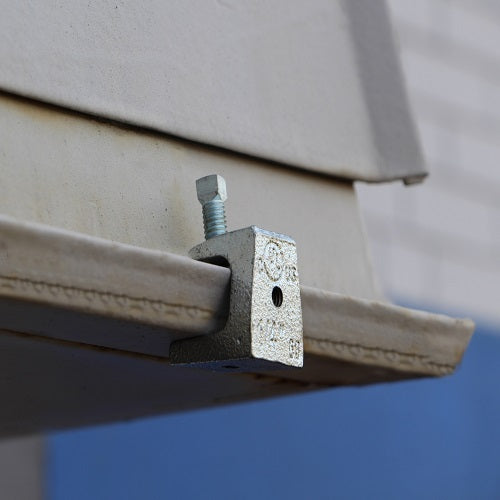

MALL BM SS CLMP 3/8-16 THREAD. The main body of the clamp is made from malleable iron, a material known for its excellent strength and flexibility. The use of 316 stainless steel, especially in the threaded components or other parts of the clamp, enhances its corrosion resistance. The 3/8-16 thread size refers to a thread diameter of 3/8 inch with 16 threads per inch. This is a standard size, commonly used for robust and secure fastening in various applications. The clamp is used to secure or hang various items like pipes, conduits, and cables to structural beams. Malleable iron ensures the clamp is strong and durable, able to handle significant loads and stresses.

Specification :

Height - 2.56 inch
Width - 1.8 inch
Material - 316 Stainless Steel
UPC - 785592124609
Part Number - MBC-3816-SS

Features :

• Tapped holes on side and bottom

• 316 stainless steel body and set screw

• Fits Beam Flange Thickness: 3/8"

• Hole Thread: 3/8"-16

• Static Load: 500

• UL, CUL
