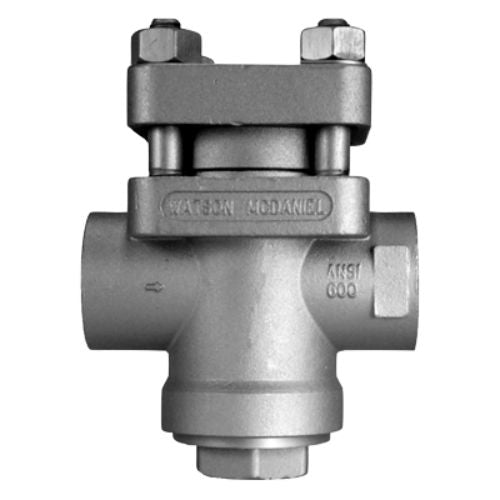

3/4"Thermodynamic socket weld Steam Trap (Repairable) TD900LS-13-F600

Product Information

Specification

 3/4"Thermodynamic socket weld Steam Trap (Repairable)

Describtion

 The TD900S Model Steam Traps are designed for drip applications, such as draining condensate from steam mains and steam supply lines, and can handle pressures up to 900 PSIG. Featuring a fully replaceable internal mechanism, these traps allow for easy maintenance while the body remains connected in-line. An integral strainer provides protection against dirt and scale buildup, ensuring reliable operation. Built for durability, the TD900S is suitable for outdoor applications exposed to freezing conditions as well as superheated steam environments.

Features:

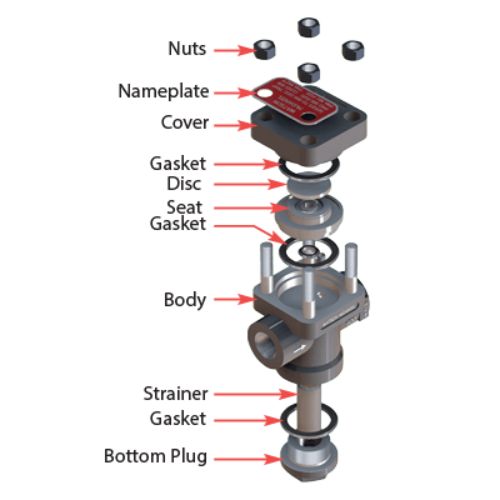

• Quick-Change” seat and disc for easy in-line repair.
• High pressure applications up to 900 PSIGgt.
• Integral strainer to protect trap from contamination.
• Hardened stainless steel seat and disc for extended service life even at extremely high pressures.
• Freezeproof when trap is piped in a vertical orientation for complete drainage of condensate.
• Trap will function in any orientation (horizontal preferred.
• Single trap model will operate over the entire pressure range (20-900 PSIG).
• Suitable for superheated steam
