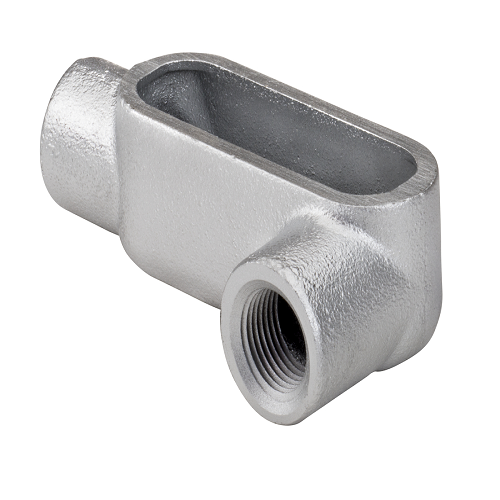

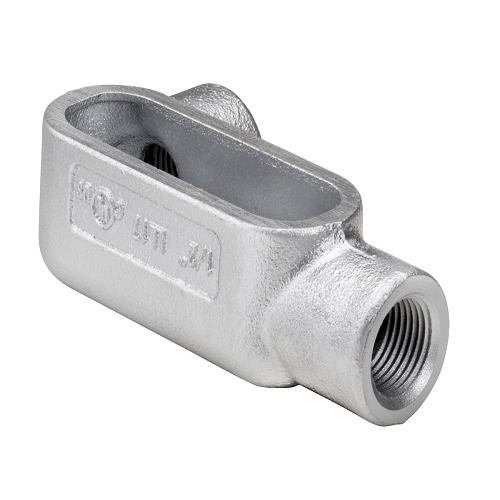

3/4" Form 7 Gray Iron LL Type Conduit Bodies LL2G7 (Pack of 12)

Product Information

Specification

About :

As indicated by its name, this conduit body has a 3/4 inch size. It's made from gray iron, a common material in electrical fittings for its durability and strength. The 'LL' designation refers to the shape and configuration of the conduit body. 'LL' types typically have two openings on the same side, arranged in a left-hand configuration. This layout is useful for changing the direction of conduit runs or for allowing access to wires for maintenance.  FM 7 refers to a specific standard or specification that the conduit body adheres to. This might include aspects like the thickness of the iron, the type of coating used (to prevent corrosion), and other manufacturing standards. The 3/4" LL Type FM 7 Gray Iron Conduit Body (CB) is a specific type of electrical fitting used in conduit systems.

Also known as:

Electrical Junction Box, Threaded Conduit Body, Gray Cast Iron Conduit Body, LL-Type Conduit Fitting.

Specification:

Material : Zinc Plated Gray Iron
Height : 2.5 Inch
Width : 1.7 inch
UPC : 751338869264

Features:

• Threaded LL type
• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div.2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
