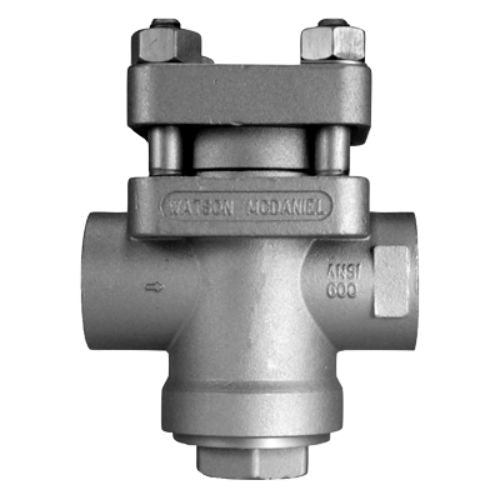

3/4"Chrome-moly alloy steel Thermodynamic Steam Trap (Repairable) TD900LS-13-N

Product Information

Specification

1/2" Chrome-moly alloy steel Thermodynamic Steam Trap

Description

The TD900S steam traps are designed to handle pressures up to 900 PSIG, making them ideal for drip applications like draining condensate from steam mains and supply lines. These traps feature a replaceable internal mechanism, allowing for easy maintenance without disconnecting the trap body from the system. Each model comes with an integral strainer, providing protection against dirt and scale buildup. Built to withstand outdoor conditions, the TD900S is also resistant to freezing and is well-suited for superheated steam environments.

Features

• Single trap model will operate over the entire pressure range (20-900 PSIG).
• Integral strainer to protect trap from contamination.
• Hardened stainless steel seat and disc for extended service life even at extremely high pressures.
• Quick-Change seat and disc for easy in-line repair.
• High pressure applications up to 900 PSIGgt.
• Trap will function in any orientation (horizontal preferred).
• Freezeproof when trap is piped in a vertical orientation for complete drainage of condensate.
• Suitable for superheated steam.

Installation and Maintenance

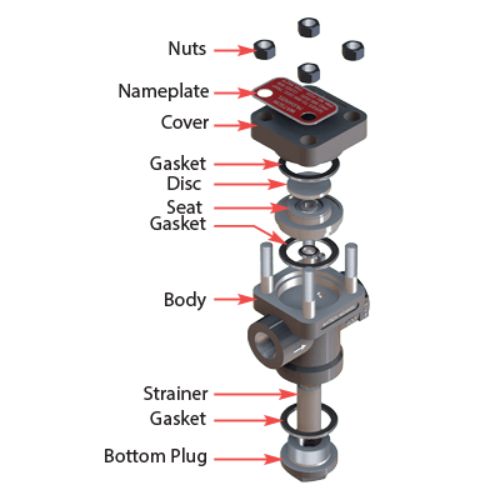

The TD900S steam trap can be installed in any orientation, though horizontal installation with the cap facing upward is recommended for optimal service life. For easy maintenance, all internal components can be quickly removed and fully replaced using a replacement kit. Each model includes an integral strainer to protect against dirt and scale buildup. The TD900S is available in a variety of connection types, including NPT, Socket-Weld, and Flange options.
