3.1 USB C Male to Male Panel Ruggedized Cable with Cap PCM-0597 (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

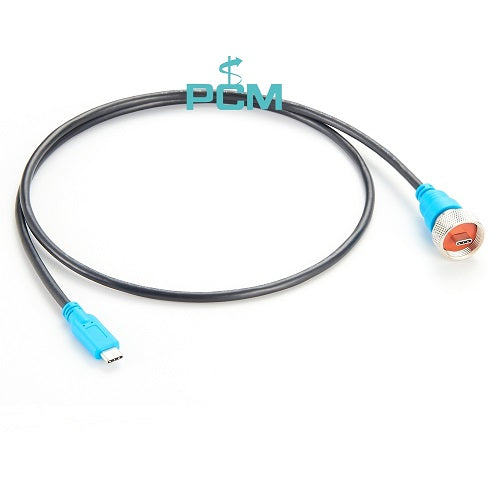

IP67 Metal USB 3.1 Type C Male to Male Panel Ruggedized Cable with Cap
Waterproofable USB C Cable IP68 Rated with Dustproof Cable, IP67 USB 3.1 type C connector Male to Male Outdoor Cable, IP67 Factory Automation USB Type-C Straight Panel Mount Cable
Also Known As :
USB Connector, USB Cable, Adapter, USB Adapter, USB Cable, Electronics Components, Components, Connectors, Male Adapter, Male Connectors
Specification :
| Connector | USB3.1 Type C |
| Panel Mount Type | Screw Locking Mechanism |
| Shell Material | Copper Shell |
| Salt Spray Test | 72H |
| Panel cut-out size | Diameter : 25mm |
| Certificate | UL, Rohs, Reach |
| Gender | USB C Male to Male |
| IP Grade | IP67 When Mated |
| Description | IP67 feed-through coupling for installation in distributon boxes with M25 cut-out With built-in USB C socket |
| Part No. | PCM-0597 |

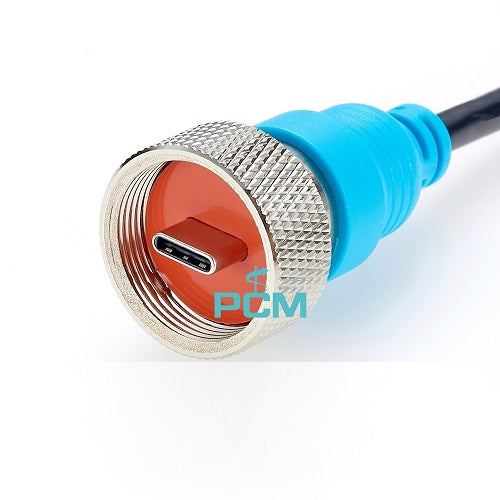

• O-rings provide IP67-rated water and dust protection.
• Circular threaded coupling mounts case side to connect with cable side connector.
• To achieve waterproof/IP67 protection, the outside USB C connection must be sealed with waterproof cable gland.
• Male USB C panel mount bulk-head connector passes through to USB C connector for use with a standard USB C cable.
• Used for Car, Boat, Motor,etc.outdoor environments.
Application :
• Marine
• Process Control
• Portable computers
• Harsh environments
• Factory automation
• Medical equipment
• Industrial computing
• Outdoor environments
• Industrial Touch Monitor
• Portable broadcast equipment
• Outdoor Embedded Touch Monitor
• Outdoor audio / video equipment
• Full IP67 High Brightness Touch Monitor
Download PDF Spec Sheet
