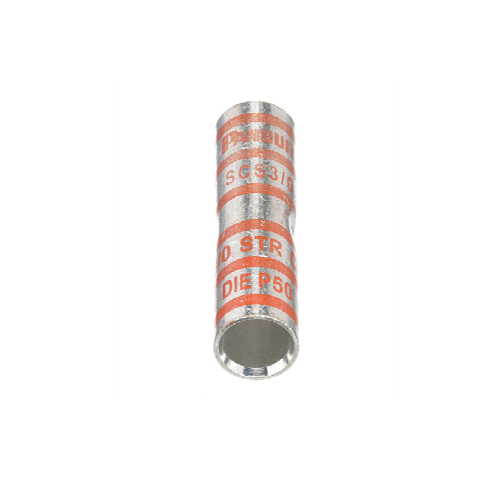

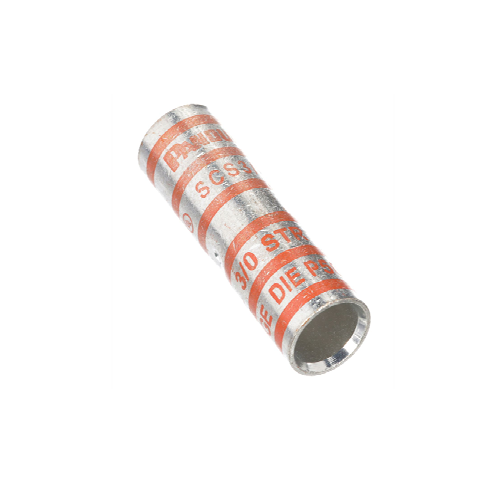

3/0 AWG Compression Splice Tin-Plated Copper Standard Orange SCS3/0-X (Pack Of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :
The SCS3/0-X Copper Compression Lug Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Specification :
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 3/0 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL listed and CSA certified for use up to 600V & Temperature Rated to 90°C |
| Finish/Coating | Tin-Plated |
| Color Code | Orange |
| Burndy Die Index Number | 14 |
| Panduit Die Index Number | P50 |
| Overall Length (In.) | 2.12 |
| Overall Length (mm) | 53.8 |
| Wire Strip Length (In.) | 1 |
| Wire Strip Length (mm) | 25.4 |
| UL Temperature Rating (°C) | 90 |
Features :
• Color coded barrel, internal wire stops,tin plated to inhibit corrosion,NEBS Level 3
