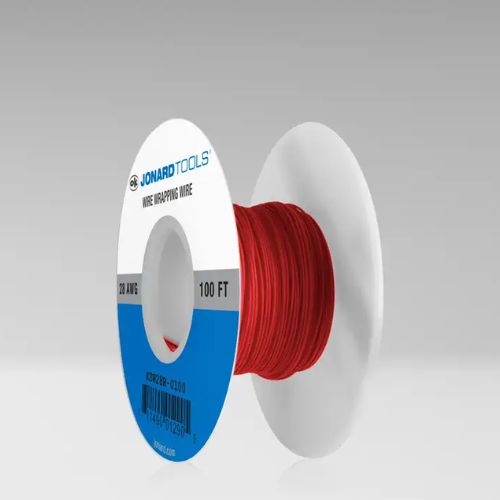

28 AWG Kynar Red Wire CSW Low Strip Force KSW28R-0100 (200 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012905 |
| Insulation Type | Low Strip Force Kynar |
| Insulation Thickness | 0.005" |
| Wire Gauge | 28 AWG |
| Overall Diameter | 0.024" |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100ft |
| Dimensions | 2.79 in x 2.79 in x 1.28 in |
| Part Number | KSW28R-0100 |
28 AWG Kynar Red Wire CSW Low Strip Force
Description:

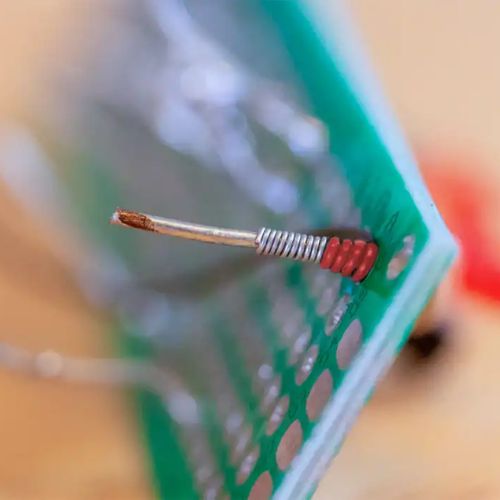

Kynar wire is commonly used in applications that demand flexibility, strength, and low weight, making it ideal for wire wrapping, power supplies, medical equipment, and aerospace systems. Its lightweight design and small diameter also make it a popular choice for circuit board prototyping. In addition, Kynar insulation delivers outstanding mechanical performance across a wide temperature range and resists a broad spectrum of chemicals—including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. Thanks to these properties, Kynar wire is exceptionally well-suited for use in even the most demanding and harsh environments.
Features:
• Low strip-force Kynar insulation — engineered for easy stripping with CSW bits and sleeves; RoHS compliant
• OHFC (oxygen-free high conductivity) silver-plated copper conductor — ensures superior electrical conductivity and enhanced flexibility
• Kynar insulation — delivers high temperature resistance (up to 105°C) and outstanding abrasion resistance
• Meets or exceeds UL 1422 requirements
Download PDF Spec Sheet
