Product Information

Specification

High-Load Capacity:

This confined space rescue tripod is rated to support up to 500 lbs for personnel, 661 lbs for materials, and 3,307 lbs of static load. It is designed for demanding lifting and rescue applications and complies with applicable CE, ANSI/ASSP Z359.4-2013, OSHA 1926.502/1910.66, and AS/NZS 1891.1/1891.4 standards.

Controlled & Secure Operation:

The anti-rotation cable helps minimize swinging and contact with surrounding walls during lifting and lowering operations. The fall arrester is designed to engage quickly in the event of a fall, helping reduce descent distance and impact forces for enhanced operational safety.

Stable All-Terrain Setup:

Adjustable legs, an anti-tip chain, and all-terrain feet provide a stable base on various surfaces, including mud, snow, asphalt, and uneven or sloped ground. The design is suitable for confined-space entrances, shafts, wells, and other challenging work areas.

Quick Deployment:

The pre-assembled configuration helps simplify installation and reduce setup errors, allowing faster deployment when time is critical. The 2,600 lbs winch provides controlled and consistent lifting performance under load, helping reduce physical effort during rescue and recovery operations.

Durable Construction:

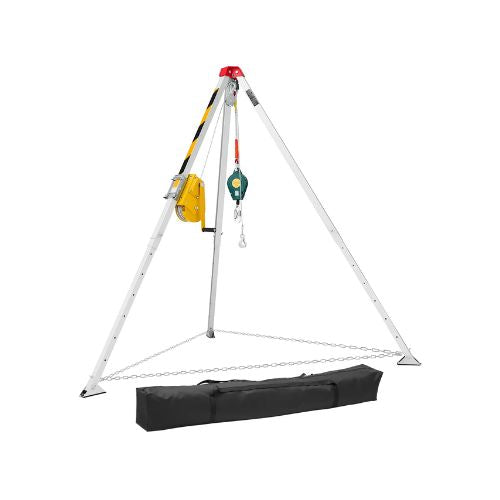

The confined space tripod features a steel-aluminum frame, galvanized steel cable, alloy steel pulley, and welded Q235 steel head, providing strength and durability for demanding industrial environments. These components are designed to withstand moisture, wear, and frequent use in challenging work conditions.
