26 AWG Kynar Wire and Dispenser Box R26-5100 (500 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 810053359594 |
| Insulation Type | Kynar |
| Insulation Thickness | 0.005" (0.127 mm) |
| Wire Gauge | 26 AWG (0.40 mm) |
| Overall Diameter | 0.027" (0.69 mm) |
| Standards | UL 1422 |
| Voltage | Not Rated |

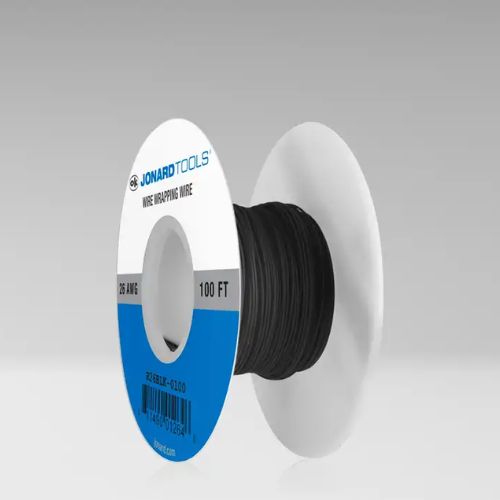

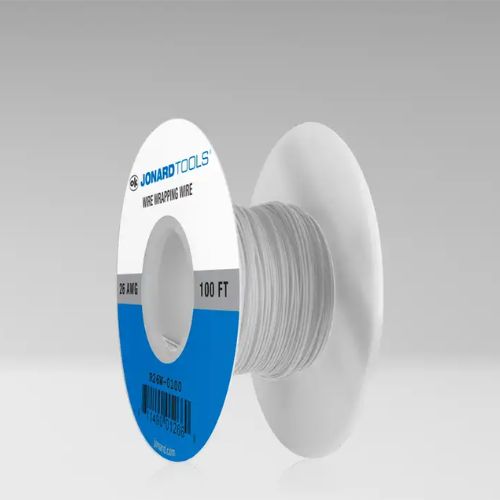

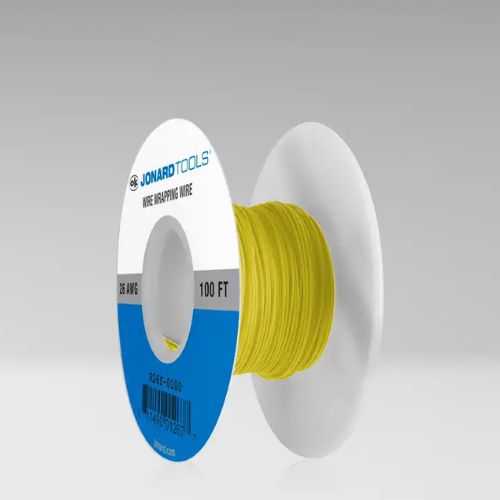

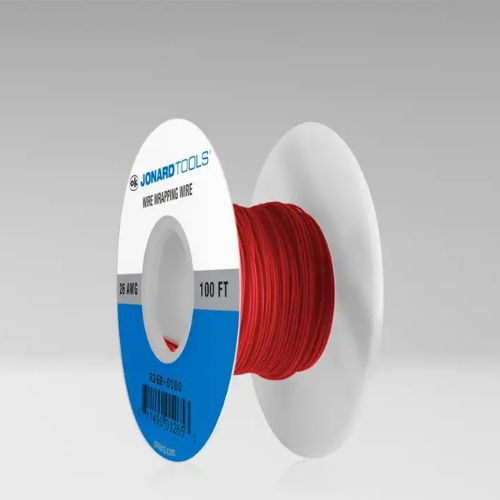

| Individual Reel Length | 100 ft. (30.48 meters) |
| Combined Reel Length | 500 ft. (152.4 meters) |
| Dimensions | 2.79 in x 2.79 in x 1.28 in |
| Part Number | R26-5100 |

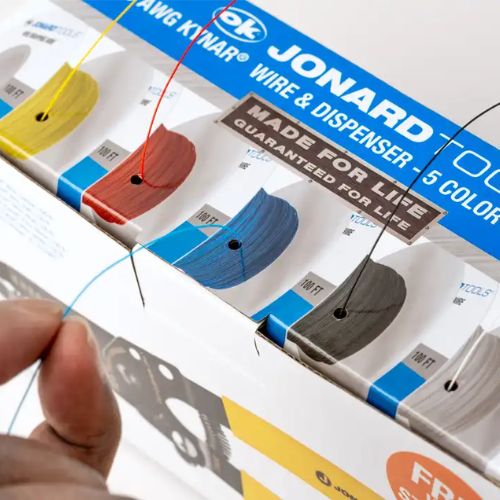

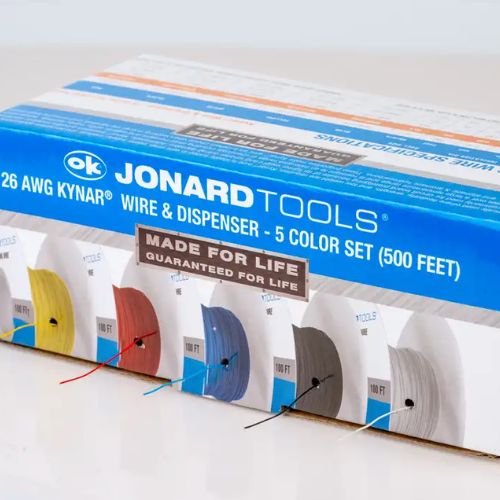

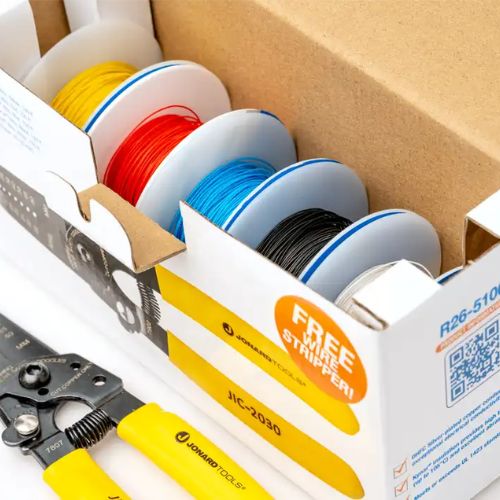

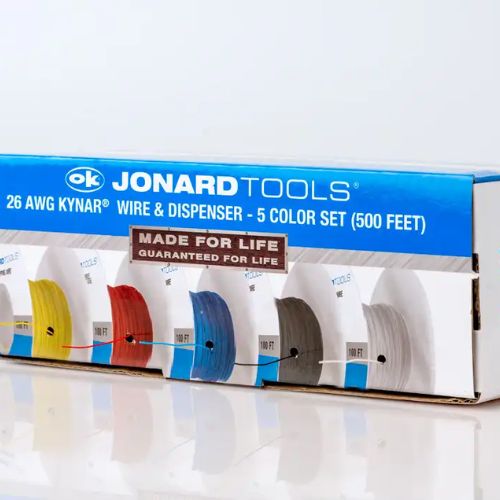

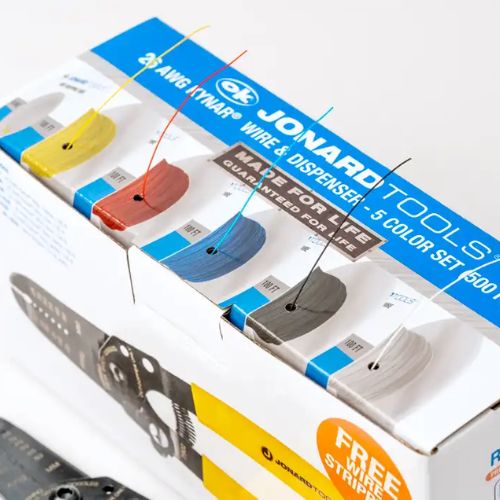

26 AWG Kynar Wire and Dispenser Box
Description:
Kynar wire, known for its flexibility, strength, and lightweight design, is widely used in wire wrap, power supply, medical, and aerospace applications. Its reduced diameter and lighter weight also make it a preferred choice for circuit board prototyping. The Kynar insulation offers exceptional mechanical performance across a broad temperature range and resists a wide variety of chemicals, including most acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These qualities make Kynar wire highly reliable, even in the most demanding environmental conditions.
Features:
⦿ Silver-plated OHFC copper conductor – delivers superior electrical conductivity and flexibility
⦿ Kynar insulation—offers high heat resistance (up to 105°C) and outstanding abrasion durability
⦿ UL 1422 compliant – meets or surpasses industry safety and performance standards
Download PDF Spec Sheet
