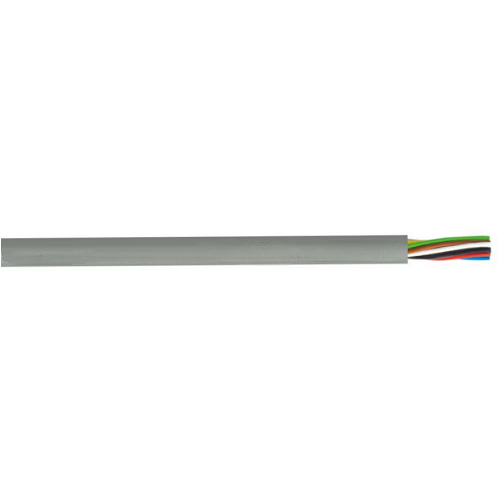

26 AWG 3C Helukabel 83138 HELUDATA TRONIC 2464 / 300 GREY PVC Data Cable

26 AWG 3C Helukabel 83138 HELUDATA TRONIC 2464 / 300 GREY PVC Data Cable

Applications:

UL-/CSA-approved, flexible data cable for use as a signal and measuring cable in machine tools, assembly lines, conveyor belts, plant construction, air conditioning devices, metallurgical plants, steel mills.

Also Known As:

26 AWG 3C HELUKABEL HELUDATA TRONIC 2464 data cable, UL 2464 PVC data cable 300V, GREY PVC multi-core data cable, 26 AWG 3C Industrial signal and data cable, Machine control data cable PVC, Flexible data cable UL CSA approved, Control and measurement data cable, Conveyor and assembly line data cable, 26 AWG 3C PLC signal data cable PVC.

Technical Data:

PVC data cable acc. to UL-Std. 758 (AWM) Style 2464, CSAStd. C22.2 No. 210 - AWM I/II A/B

Temperature range
flexible -10°C to +80°C
fixed -40°C to +80°C

Nominal voltage
UL (AWM) AC 300 V

Test voltage core/core
1500 V

Breakdown voltage
3000 V

Minimum bending radius
flexible 15x Outer-Ø
fixed 7.5x Outer-Ø

Cable Structure:

• Copper wire tinned, finely stranded, AWG sizes
• Strand construction:
26 AWG: 7 x 0.162 mm
24 AWG: 7 x 0.202 mm
22 AWG: 7 x 0.254 mm
20 AWG: 7 x 0.320 mm
18 AWG: 19 x 0.235 mm
16 AWG: 19 x 0.310 mm
• Core insulation:
26 - 20 AWG: semirigid PVC acc. to UL-Std. 1581 Tab. 50.183
18 - 16 AWG: PVC acc. to UL-Std. 1581 Tab. 50.182
• Core identification: acc. to DIN 47100 colour coded
• x = without protective conductor
• Cores stranded in layers with optimal lay lengths
• Outer sheath: PVC acc. to UL-Std. 1581 Tab. 50.182, CSAStd. C22.2 No. 210
• Sheath colour: grey (RAL 7001)

Properties:

• Resistant to: oil, solvents, acids, alkalis
• The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Tests:

• Flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2, UL VW-1, CSA FT1

Notes:

• Conductor sizes are based on the AWG measurement system, metric conductor sizes (mm²) are approximated and are for reference only

Specification:

• Size : 26 AWG
• No. cores x AWG-No: 3 x 26
• No. cores x cross-sec.mm²approx : 0.14
• Outer Ø. mm approx: 3.7
• Cu factor per km: 4.0
• Weight approx kg/km: 15.0
