250 MCM 3C HVTECK Copper 115 mil NLEPR TS AIA 5kV 133% IL Orange PVC Jacket CSA

250 MCM 3C HVTECK Copper 115 mil NLEPR TS AIA 5kV 133% IL Orange PVC Jacket CSA

Application:

The 5kV HVTECK is a CSA armoured cable for industrial and commercial medium voltage applications. Rated FT4, -40°C, Hazardous Locations (HL). These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions. Rated for 1000 lbs /FT maximum sidewall pressure. These cables feature sunlight and moisture resistance, exceptional corona resistance, resistance to most chemical soils and acids and are flame retardant.

Also Known As:

250 MCM 3C HVTECK 5kV Copper 3 Conductor Cable, 3/C 115 mil NLEPR Power Cable, 5kV 133% Insulation Level Copper Cable, 250 MCM 3C CSA Approved 5kV Copper Cable, 5kV TS AIA Armored Copper Cable, 5kV Copper Medium Voltage Cable, 115 mil NLEPR Insulated Power Cable, HVTECK Copper 3/C 5kV CSA Cable, 5kV PVC Jacketed Copper Cable, 250 MCM 3C Triple Conductor 5kV HVTECK Cable.

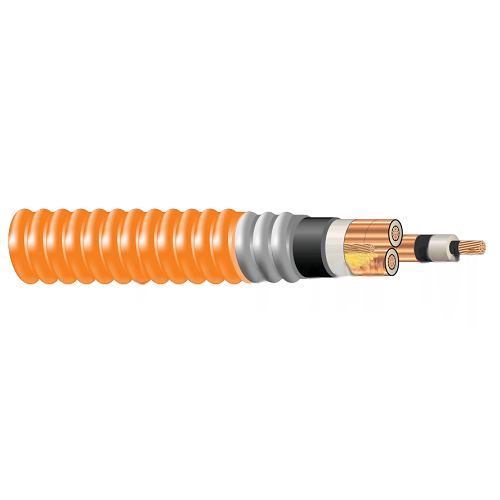

Construction:

• Conductor: Class B compressed stranded bare copper per ASTM B3 and ASTM B8
• Conductor Shield: Semi-conducting cross-linked copolymer
• Insulation: 115 Mils No Lead Ethylene Propylene Rubber (NL-EPR) 133% insulation level
•  Insulation Shield: Strippable semi-conducting cross-linked copolymer
• Copper Tape Shield: Helically wrapped 5 mil copper tape with 25% overlap
• Filler: Interstices filled with non-hydroscoping/non-wicking fillers
• Grounding Conductor: Class B compressed stranded bare copper ground per ASTM B3 and ASTM B8
• Binder: Polypropylene tape
• Inner Jacket: PVC inner jacket
• Armour: Aluminum Interlocked Armour (AIA)
• Overall Jacket: Orange Polyvinyl Chloride (PVC) Jacket

Standards:

• ASTM B3 Soft or Annealed Copper Wire
• ASTM B8 Concentric-Lay-Stranded Copper Conductors
• CSA C22.2 No. 174 Cables in Hazardous Locations
• CSA C22.2 No. 2556 & No. 0.3 Wire and Cable Test Methods
• CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV
• CSA C68.3 Shielded & Concentric Neutral Power Cable - 5 to 46 kV
• CSA LTGG [-40°C] - as per C68.10 - for Cold Bend and Impact rating
• CSA HL - for Hazardous Locations rating
• CSA SUN RES - for Sunlight Resistant rating
• ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable
• ICEA T-29-520 Flame Test (210,000 BTU/Hr)
• IEEE 383 Flame Test (70,000 btu)
• IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test
• FT1 Flame Test (1,706 BTU/Hr nominal - Vertical Wire Flame Test)
• AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV (Qualification Test Requirements)

Specifications:

• Size: 250 MCM
• Number of Strands:  37
• Diameter Over Conductor (inch):  0.558
• Diameter Over Insulation (inch):  0.834
• Insul. Thickness mil: 115
• Diameter Over Insulation Shield (inch):  0.894
• Ground Size AWG:  4
• Inner Jacket Thickness (mil):  110
• Diameter Over Armor (inch):  2.510
• Overall Jacket Thickness mil :  75
• Approx. OD inch :   2.660
• Copper Weight lb/1000ft:  2689
• Approx. Weight (Lbs/1000'Ft):   4772
• Min Bending Radius (In):  18.6
• DC Resistance @ 25°C Ω /1000ft:  0.043
• AC Resistance @ 90°Ω /1000ft:  0.056
• Inductive Reactance @ 60HzΩ/1000ft:  0.033
• Allowable Ampacity In Air 90°C Amp:  376
• Allowable Ampacity Directly Buried 90°C Amp:  410
