250-500V NEMA 4X Enclosed Motor Starter 38A 3PH Reset Button AF3806R4M-4K
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Height | 13 |
| Depth | 9 |
| Width | 13 |
| Full Load Amps @ 115V | 38 FLA |
| Voltage | 250-500 V |
| Phase | Three Phase |
| Enclosure Material | Polycarbonate |
| Operating Mode | Reset Button Only |
| Color | Gray |
| Overload Max Amps | 24-29 A |
| Manufacturers Part Number | AF3806R4M-4K |
| Brand | Springer Controls |
250-500V NEMA 4X Enclosed Motor Starter 38A 3PH Reset Button AF3806R4M-4K
Description:

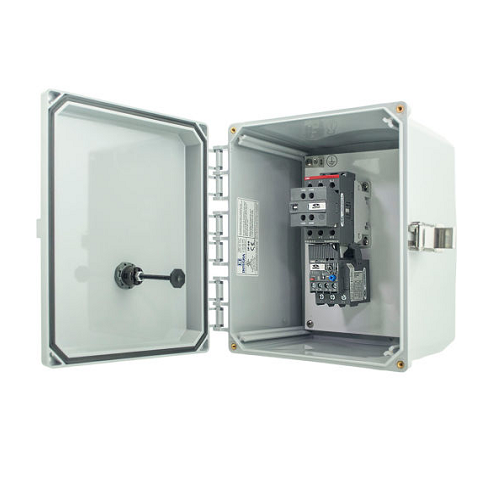

Springer controls manufactures a complete line of IEC enclosed AC motor starters up to 60HP or 80A. Assembled motor starters consist of a contactor, overload relay and a NEMA 4X rated polycarbonate enclosure. Be sure to confirm whether it is 1phase or 3phase power to the motor. Choose a starter rated for current (Amps) higher than the FLA of your motor. It is assumed, in this arrangement that the line voltage and control voltage are the sameIf you would like remote start terminals and will be using different voltage for line power and control power, we refer to this as separate control voltage + remote start terminals
38A
3 Phase
Separate Coil Voltage + Remote Start Terminals

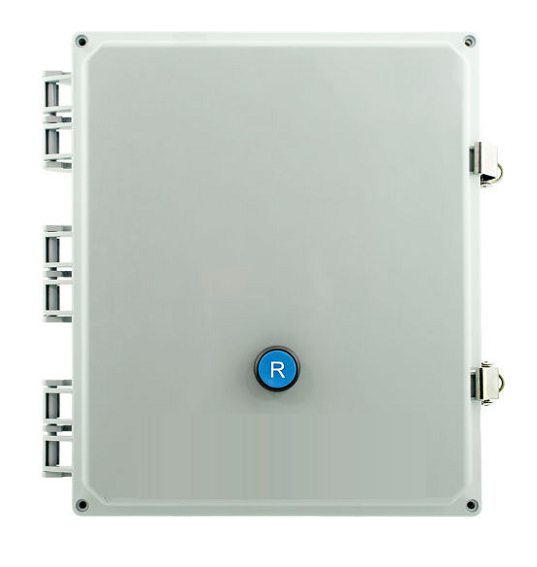

Reset Button Only
250-500V AC/DC Coil
24-29A O/L
NEMA 4X Poly
