24 Fiber Singlemode G.657.A1 Teraflex Bend Resistant Dri Lite Loose Tube SJSA Cable 12024KD01
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About :

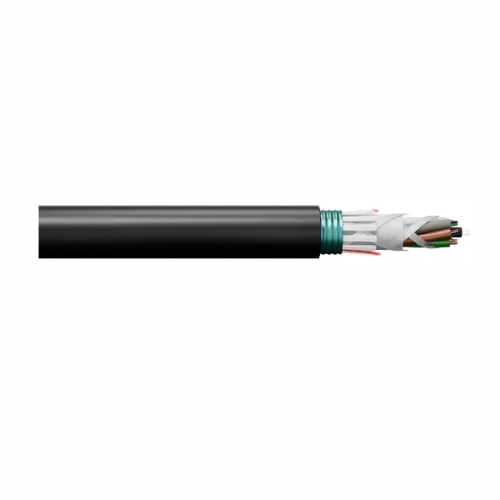

TeraFlex Bend Resistant G.657.A1 Singlemode loose tube cables are the product of choice as the backbone in Outside Plant (OSP) environments. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. The core is constructed by stranding the buffer tubes around a central member using a reverse oscillating lay (ROL).

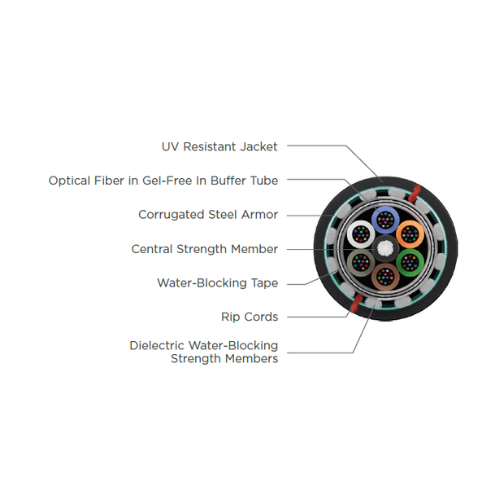

The core is wrapped with flexible strength members covered with a water-blocking tape. A corrugated steel armor is applied and then encased with a black jacket. Rip cords are included under the armor for ease of entry.
Also Known as :
24 Fiber Cable, Outside Plant Cable, Singlemode Cable, Fiber Optic Cable, Gel Free Tube Cable, Bend Resistant Cable, Outdoor Fiber Optic Cable, Voice and Data Cable.
Specifications :
| Fiber Count | 24 |
| Fiber Type | Single Mode |
| TeraGain | Core: 62.5 µm Clad: 125 µm |
| Buffer Construction | Gel-Free |
| Nominal Diameter | 0.46 inch / 11.7 mm |
| Tensile Loading | Install: 600 lbs Long Term: 200 lbs |
| Minimum Bend Radius | Install: 9.2 inch Long Term: 4.6 inch |
| Jacket Color | Black |
| Part Number | 12024KD01 |
Standards Compliance:
• Telcordia GR-20-CORE
• RDUP PE-90 Designation MLT
• ICEA S-87-640-2011
• RoHS-compliant
Applications:
• Direct bury, underground duct and lashed aerial
• Trunk, distribution and feeder cable
• Local loop, metro, long-haul and broadband network
Benefits:
• High fiber density
• Multiple network applications
• Improves compressive strength and rodent protection
• Speeds fiber access and cleanup
