24 AWG Kynar Red Wire CSW Low Strip Force KSW24R-0100 (200 FT)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Kynar Wire |
| UPC | 811490012806 |
| Insulation Type | Low Strip Force Kynar |
| Insulation Thickness | 0.004" |
| Wire Gauge | 24 AWG |
| Overall Diameter | 0.030" |
| Standards | UL 1422 |
| Voltage | Not Rated |
| Reel Length | 100ft |
| Dimensions | 2.79 in x 2.79 in x 1.28 in |
| Part Number | KSW26R-0100 |
24 AWG Kynar Red Wire CSW Low Strip Force
Description:

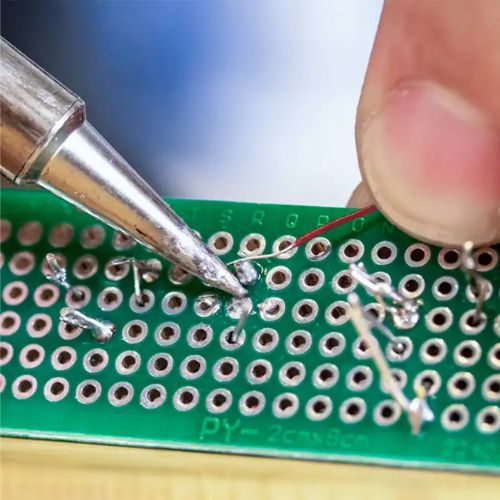

Kynar wire is commonly used in applications that require flexibility, strength, and low weight, making it ideal for wire wrapping, power supplies, medical equipment, and aerospace systems. Its lightweight construction and small overall diameter also make it a popular choice for circuit board prototyping. Kynar insulation delivers excellent mechanical performance across a wide temperature range and offers exceptional resistance to numerous chemicals, including most inorganic and organic acids, bases, alcohols, halogenated solvents, and both aliphatic and aromatic hydrocarbons. These superior properties make Kynar wire a dependable solution for use in even the most demanding environmental conditions.
Features:
• Low strip-force Kynar insulation—precision processed to ensure reduced strip force and compatibility with CSW bits and sleeves (RoHS compliant)
• OHFC (Oxygen-Free High Conductivity) silver-plated copper conductor—delivers excellent electrical conductivity and superior flexibility
• Kynar insulation—offers high temperature resistance (up to 105°C) and outstanding abrasion resistance
• Complies with UL 1422 standards or exceeds performance requirements
Download PDF Spec Sheet
