24 AWG 8-position 8-wire Shielded Modular Plug Black MPSI588T (Pack of 10)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
About:
• The 24 AWG 8-position 8-wire Shielded Modular Plug is designed for terminating shielded twisted pair (STP) cables used in high-speed data networks. This modular plug features 8 positions and 8 contacts (8P8C) and is ideal for use with 24 AWG stranded or solid shielded cables.
• The plug's shielded housing provides a conductive path for grounding, ensuring superior signal integrity and reduced electromagnetic interference (EMI). Contacts are plated with 50 µm of gold for enhanced performance and durability. The plug is suitable for a variety of applications, including Ethernet, broadband, and other high-speed data communications.

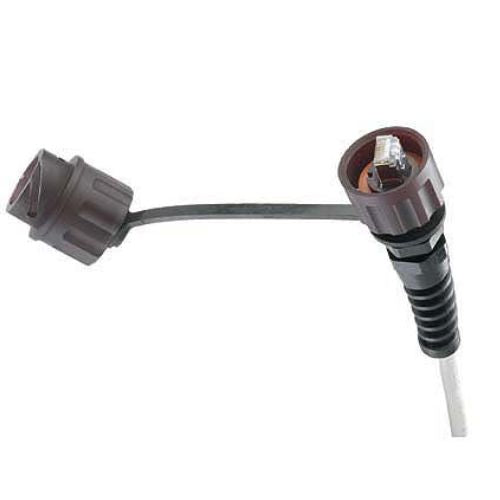

• The IndustrialNet™ Cat 5e Modular Plug is an 8-position, 8-wire connector designed for terminating Cat 5e industrial grade, 24 AWG, shielded twisted pair (STP) copper cable. This modular plug provides robust performance with an IP67 rated bulkhead seal, ensuring protection from dust and temporary immersion in water.
• Secondary seals on both the connector and plug offer additional protection, making it ideal for harsh industrial environments. The plug is designed for reliable, high-performance terminations in demanding applications, including Ethernet and other high-speed data communications.
Also Known As:
Shielded RJ45 Plug, STP Modular Connector, 8P8C Shielded Connector, Cat5e/Cat6 Shielded Plug, Shielded Ethernet Plug, Shielded Network Connector, Shielded LAN Connector, Shielded RJ45 Connector.
Specification:
| Product Type | Industrial Copper Connector |
| Color | Black |
| IP Rating | IP20 |
| Connector Type | Modular Plug |
| Shield Type | Shielded (STP) |
| Width | 1.18 In |
| Height | 5.22 In |
| Depth | 3.77 In |
| Standards Met | Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 5e and ISO11801 Class D standards at swept frequencies 1 to 100 MHz, Meets all ODVA Ethernet/IP^ electrical and mechanical performance requirements, Protects and seals connections against dust and water immersion to ANSI/IEC 60529-2004Meets ANSI/TIA-1096-A; contacts plated with 50 microinches of gold for superior performance, Plug meets IEC 60603-7 specifications, Rated IP67/68 for dust protection and temporary liquid immersion, Rated UL Type 12, 6/6P, 4X |
| Part No. | MPSI588T |
Features:
• Bulkhead provides IP67/IP65 seal when mated with IP67/IP65 connector or coupler.
• Terminates 24 AWG stranded or solid conductor with a maximum conductor insulation diameter of 0.004 in.
• Gasket and seal made of inert, chemically-resistant material.
• Connector components are made of high temperature rated material.
• Tethered caps maintain seal during unmated connection.
• Compatible with leading switch manufacturers' equipment.
