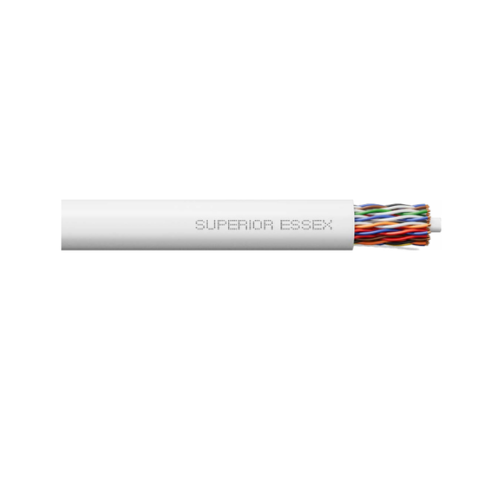

24 AWG 25 Pair Cat5e Power Sum UTP Plenum Copper Cable White 51-478-48 1000 ft

Product Information

Specification

About :

25-Pair Power Sum Category 5e UTP cables are designed to provide support for both backbone and horizontal applications. These applications include inter-closet backbone links, equipment cabling between cross-connect and hub equipment and zone distribution horizontal cabling between wiring closets and multiple work area transition points. The cable is available in CMP and CMR ratings.

Also Known as :

24 AWG Cable, 25 Pair Cable, 25 Pair Premises Cable, 24 AWG 25 pair, 25 Pair Cat5e Cable, Cat5e 25 Pair Cable, CAT5E Cable, Cat5e CMR/CMX, Power Sum Cat5e Cable, Cat5e CMP Cable..

Performance Compliance:

• UL 444
• CSA C22.2 No. 214-08
• UL 1666
• NFPA 262
• ANSI/TIA-568.2-D
• ANSI/ICEA S-90-661-2012
• Article 800, NEC (NFPA 70)
• RoHS-compliant/RoHS 2-compliant

Applications:

• 10BASE-T through 1000BASE-T Ethernet
• Power over Ethernet (PoE) - IEEE 802.3bt Type 1 to 4
• ATM and token ring

Benefits:

• Handles tight installations
• Easier identification of conductors
• Ease of use during installation
• Dual length marking complies with government, military and international requirements

Features:

• Small outside diameter
• Vibrant insulation colors
• Flexible jacket material
• Marked in feet and meters

Specifications:
