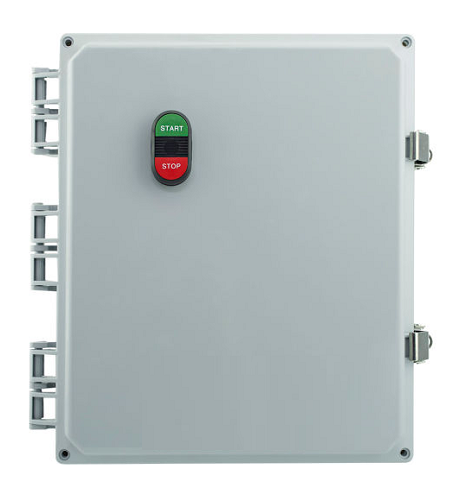

24-60V NEMA 4X Enclosed Motor Starter 26A 1PH Start/Stop AF2616P4M-1H
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Height | 13 |
| Depth | 9 |
| Width | 13 |
| Full Load Amps @ 115V |
26?ÿFLA |
| Voltage | 24-60 V |
| Phase | Single Phase |
| Enclosure Material | Polycarbonate |
| Operating Mode | Start/Stop Butttons |
| Color | Gray |
| Overload Max Amps | 13-16 A |
| Manufacturers Part Number | AF2616P4M-1H |
| Brand | Springer Controls |
24-60V NEMA 4X Enclosed Motor Starter 26A 1PH Start/Stop AF2616P4M-1H
Description:

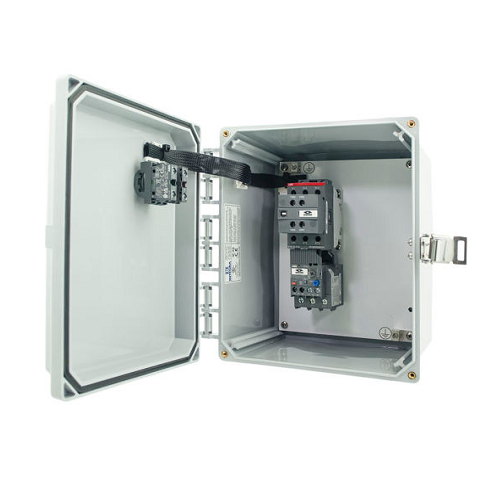

Springer controls manufactures a complete line of IEC enclosed AC motor starters up to 60HP or 80A. Assembled motor starters consist of a contactor, overload relay and a NEMA 4X rated polycarbonate enclosure. To select the proper starter for your requirements. Be sure to confirm whether it is 1phase or 3phase power to the motor. Choose a starter rated for current (Amps) higher than the FLA of your motor. Once you have done this it should narrow down the starters to only options suitable for your motor and power requirements. Then select your starter based on the following optional criteria. It is assumed, in this arrangement that the line voltage and control voltage are the sameIf you would like remote start terminals and will be using different voltage for line power and control power.
26A
1 Phase
Separate Control Voltage + Remote Start Terminals
Start/Stop
24-60V AC/DC Coil
13-16A O/L
NEMA 4X Poly
