22-24 AWG Insulated Wrap and Unwrap Tool HW-UW-224INS
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Type | Wire Wrap |
| UPC | 811490015364 |
| Wrap Type | Regular |
| Wrap Wire Gauge | 22-24 AWG |
| Wrap Terminal Hole Diameter | 0.075" |
| Wrap Terminal Hole Depth | 1" |
| Wrap Outside Diameter | 0.218 |
| Wrap Post Size | 0.045" |
| Unwrap Wire Gauge | 20-26 AWG |
| Unwrap Terminal Hole Diameter | 0.070" |
| Unwrap Terminal Hole Depth | 1" |
| Unwrap Outside Diameter | 0.156" |
| Handle Type | Aluminum |
| Dimensions | 7.13 in x 0.63 in x 0.63 in |
| Part Number | HW-UW-224INS |

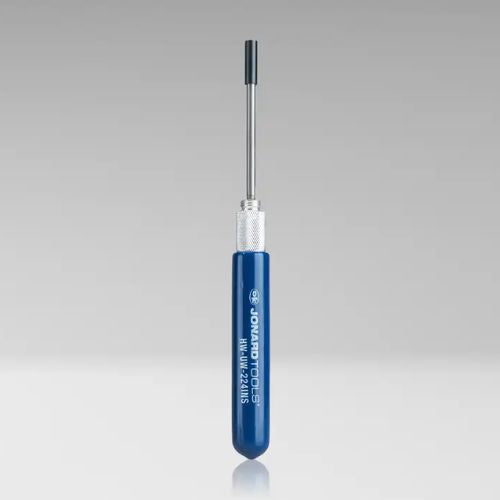

22-24 AWG Insulated Wrap and Unwrap Tool
Description:

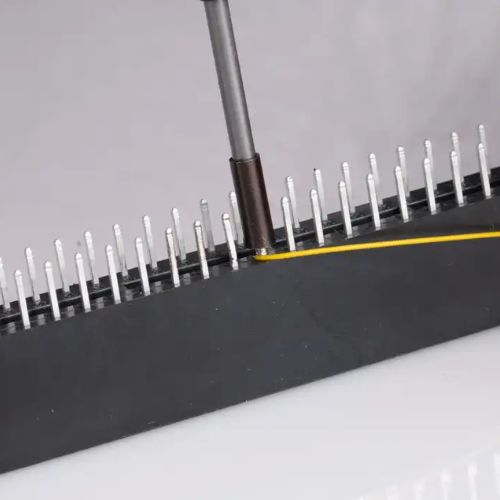

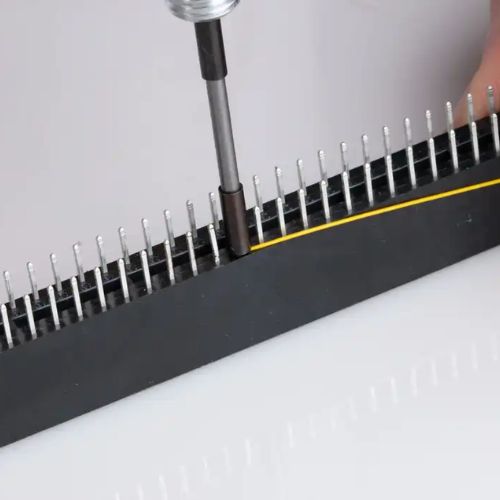

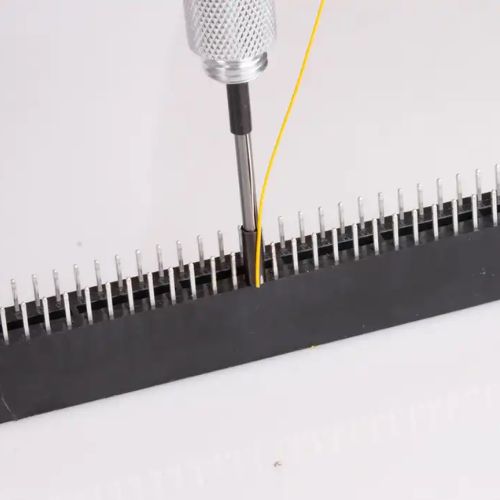

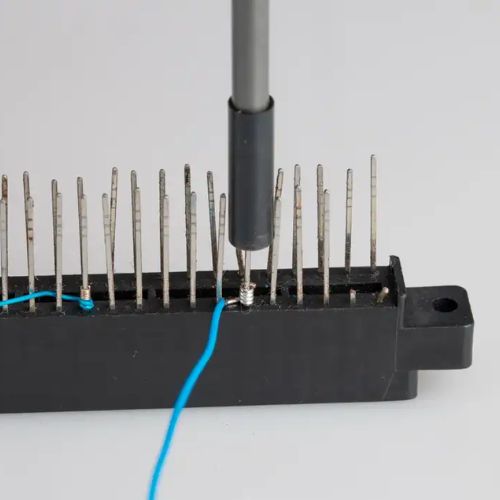

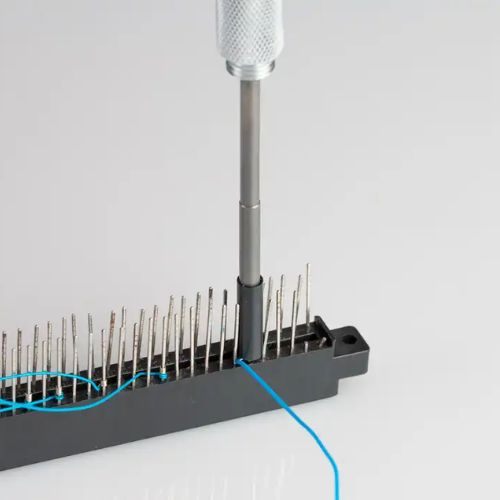

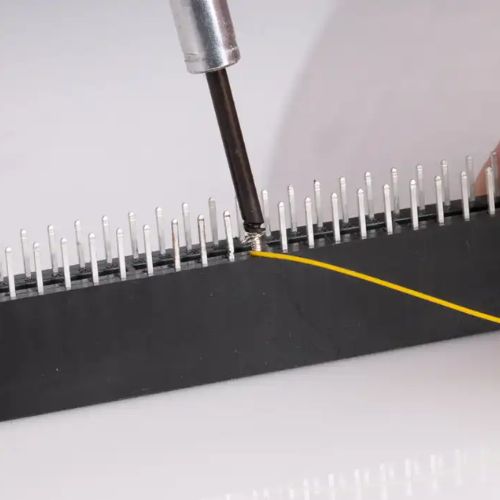

This hand wrap tool is ideal for wrapping and unwrapping wire on binding posts and is perfectly suited for 22–24 AWG (0.65–0.50 mm) wire.
Features:
• Insulated handle provides dielectric protection
• Compact, convenient design for precise manual wire wrapping where powered tools aren’t feasible

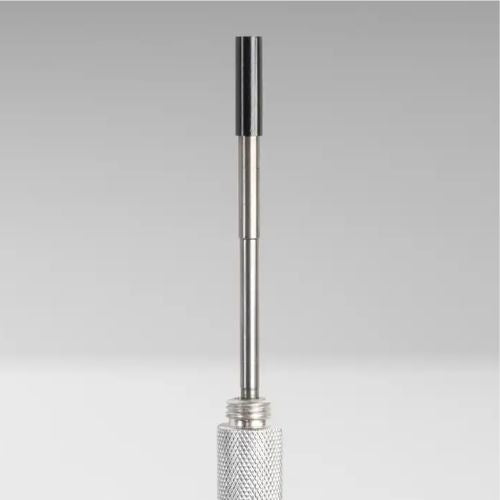

• Quick switch between wrap and unwrap functions by reversing the end cap
Download PDF Spec Sheet
