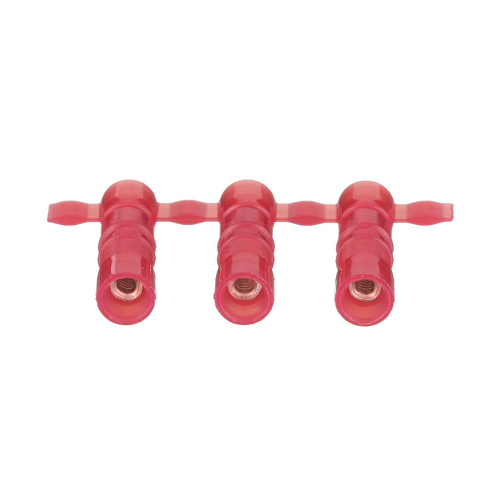

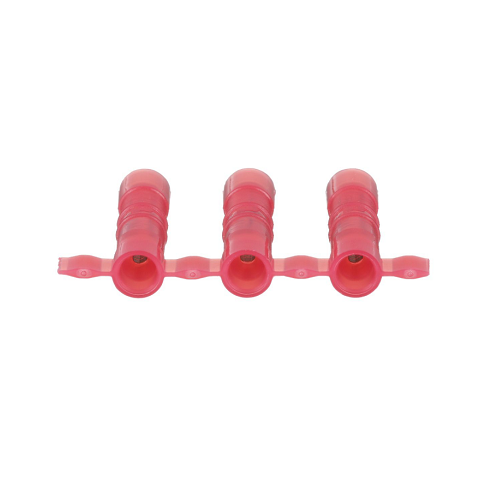

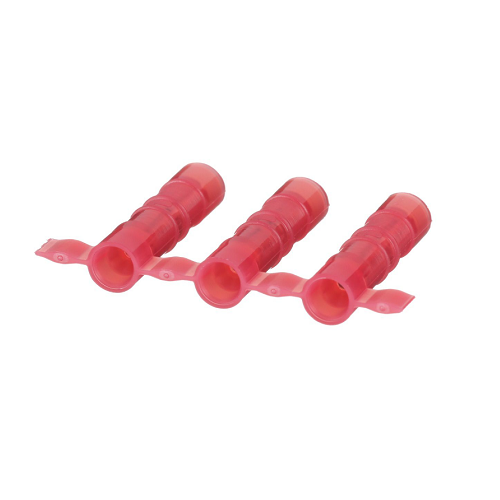

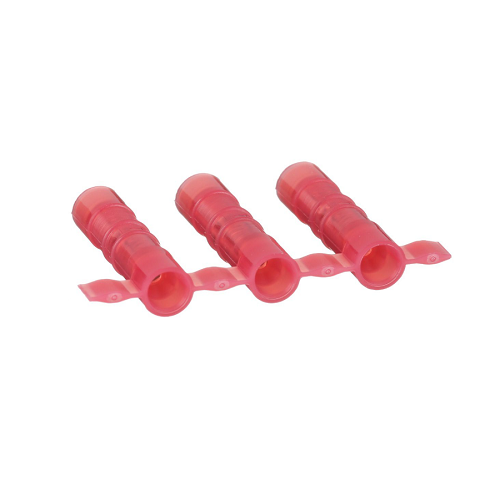

22-16 AWG Butt Splice Funnel Entry Copper Premium Grade Nylon 600V BSN18-3K (Pack of 3000)

Name: 22-16 AWG Butt Splice Funnel Entry Copper Premium Grade Nylon 600V BSN18-3K (Pack of 3000)
Brand: Wire Xpress
SKU: BSN18-3K
Price: 1033.4 USD
Availability: InStock
Rating: 4.91 (8383 reviews)

Roll over image to Zoom

22-16 AWG Butt Splice Funnel Entry Copper Premium Grade Nylon 600V BSN18-3K (Pack of 3000)

Write a Review

Ask a Question Download PDF Buyer Guide

SKU: BSN18-3K

Select a Variant

22-16 AWG Butt Splice Funnel Entry Copper Premium Grade Nylon 600V BSN18-3K (Pack of 3000)

Availability: In stock

Price:

Regular price: $1,033.40
Sale price: $1,033.40

Shipping Cost Calculated at Checkout. Standard Lead Time is 1 to 6 Business Days.

Qty:

Where are we? 4 Continents 9 Countries

Got any Questions?

Speak with a real person who will go out of their way to help you!

Call Us: 1-516-482-6313Text Us: 1-516-703-3460

Chat

Live Chat: Bottom Right Corner!

Email Us

info@nassaunationalcable.com

Quick Support

Product Information

Specification

Product Type:	Butt Splice
Maximum Copper Conductor Size (AWG STR):	#18
Maximum Copper Conductor Size (AWG STR):	#18
Minimum Copper Conductor Size (AWG SOL):	#22
Minimum Copper Conductor Size (AWG STR):	#22
Maximum Metric Conductor Size (mm²):	1
Minimum Metric Conductor Size (mm²):	4
Sub Brand:	Pan-Term®
Copper Conductor Size (AWG):	#22 - #16
Barrel Type:	Funnel Entry
Maximum Voltage (V):	600
Maximum Voltage (kV):	0.6
Base Material:	Copper
Insulation Material:	Nylon
Standards Met:	BSN18-3K
Finish/Coating:	Tin-Plated
Color Code:	Red
Overall Length (In.):	0.95 Inches
Overall Width (In.):	0.22 Inches
Wire Strip Length (In.):	5/16 Inches
UL Temperature Rating (°C):	105
UL Temperature Rating (°F):	221
CSA Temperature Rating (°C):	105
CSA Temperature Rating (°F):	221
Part No:	BSN18-3K

Part Features:

• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Internal wire stop assures proper length of insertion into terminal barrel

Type BSH:

• Designed to splice two solid or stranded wires together to repair or lengthen wires
• Butted configuration provides low profile for limited space applications
• Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture
• After crimping, heat shrink insulation is completed with a standard heat gun
• Minimum continuous operating temperature -65°F (-55°C)
• Maximum continuous operation temperature 230°F (110°C)
• Shrink temperature 300°F (150°C)
