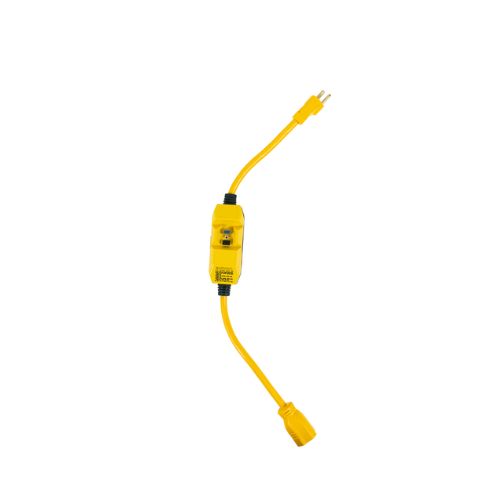

20A 120V Gauge SJTW GFCI Cord Set Yellow 25080011-6 (Pack of 6)

Product Information

Specification

About :

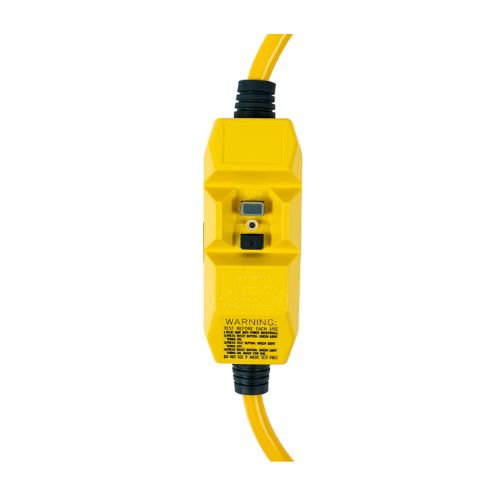

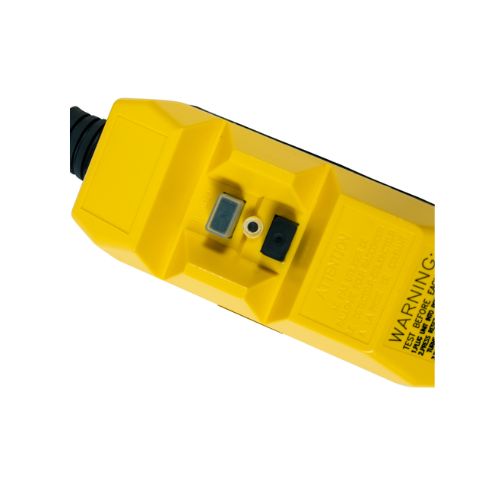

Shockshield in-line GFCI ensures protection from dangerous current leakage that can cause electrical shock and possible electrocution.

Also known as :

GFCI Cord, GFCI Cord Set, GFCI Tri End, 14/3 GFCI Cord, 14/3 SJTW Cord, 15A Inline GFCI.

Specification :

• Amperage : 15A
• Voltage : 120V
• Guage : 12/3
• Material : SJTW-A
• Color : Yellow
• UPC : 024098909113
• Part Number :25080011-6

Features :

• Applications Include: High Pressure Sprayer Washers, Construction Site Power Tools, Drain Snakes, Pumps, Construction Sites, Industrial Appliances

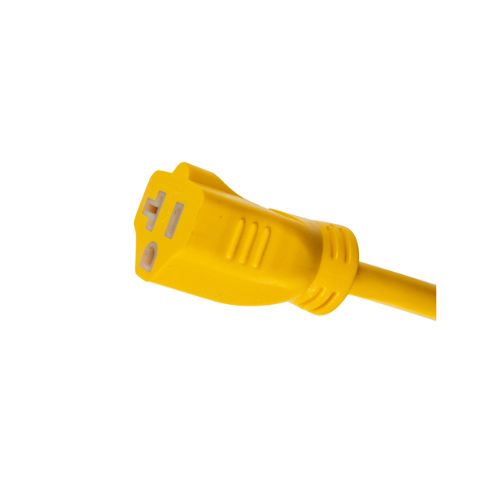

• NEMA 5-20 P&R, Yellow

• Grounded Neutral: 4 Ohms

• Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS

• Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz

• Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground

• Endurance: 3,000 Operations Minimum

• Overload Current: Six Times Rated Current

• Insulation Voltage: 1500 Vrms - 1 Min.

• Cord Gauge: 12/3 AWG
