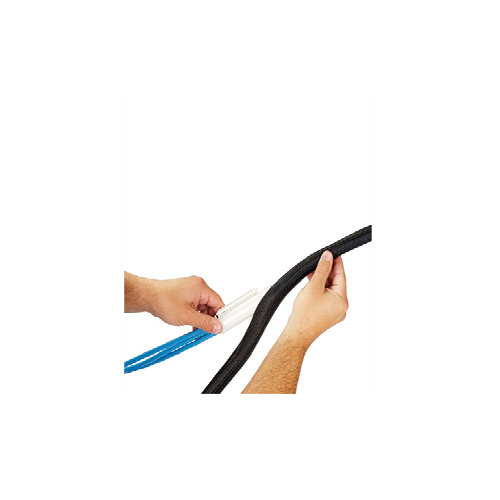

The SE25PS-TR0 Pan-Wrap Braided Sleeving allows for installation after wire or cable is routed and terminated. Ideal for applications where re-entry is required and provides continuous abrasion resistance for wires, cables, and tubing. The lightweight, durable protection is highly flexible, and the open weave will not trap heat or humidity. Temperature range: -94°F – 257°F (-70°C – 125°C). Polyethylene Terephthalate. Nominal Diameter: 0.25" (6.4 m), 200' (61.0 m) long. Color Black.
Specification :
| Sub Brand | Pan-Wrap |
| Application | (1) Suited for the Challenging Applications Found in the Transportation and Marine Industries due to its Open Weave Design, Lack of Halogens, and Exceptional Flammability Performance. (2) Installation Tool Reduces Installation Time by Allowing Easy Loadin |
| Material | PET |
| Flammability Rating | UL94V-0 |
| Color | Black |
| Resistance Properties | Abrasion-Resistant, UV-Resistant (20-Year) |
| Standards Met | CSA Certified; UL 94 V-0 Rated, UL Recognized E116868; RoHS Compliant, Halogen Free |
| Maximum Diameter (In.) | 0.26 |
| Maximum Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 125 |
| Maximum Operating Temperature (°F) | 257 |
| Minimum Operating Temperature (°C) | -70 |
| Minimum Operating Temperature (°F) | -94 |
| Nominal Diameter (In.) | 0.25 |
| Nominal Diameter (mm) | 6.4 |
| Overall Length (ft.) | 200 |
| Overall Length (m) | 61 |
| Product Type | Braided Sleeving |
Features :
• Allows for installation after wire or cable is routed and terminated, Ideal for applications where re-entry is required, Provides continuous abrasion resistance for wires cables, and tubing, Lightweight durable protection, Highly flexible open weave will not trap heat or humidity
