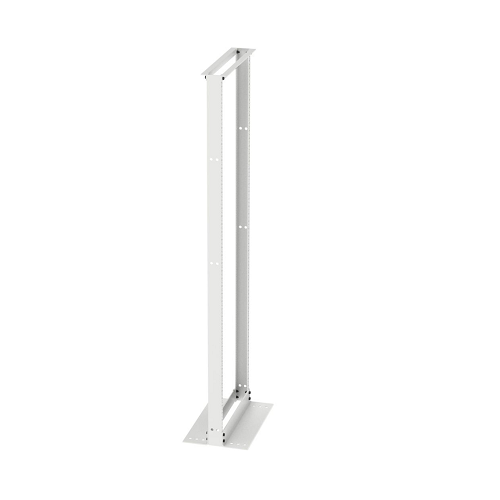

2-Post White Aluminum 52RU Rack R2P96WH
About:
The 2-Post rack provides a reliable foundation for mounting telecommunications and data center equipment. The 96 inch tall rack accepts 19-inch wide equipment with mounting rails that have #12-24 EIA universal mounting hole spacing, and printed numbering from the bottom up. A range of cable managers and accessories work with the rack. The 3-inch deep channel rack is UL listed for 1,000 pounds and is made of extruded aluminum. The rack is 52 RU and white.
Also Known As:
2-Post Rack, Aluminum Material, Powder-Coated Finish, 52RU Rack, White Color
Specification:
| Product Type | 2-Post Rack |
| Note | Rack channel depth is 3" (76mm) |
| Material | Aluminum |
| Mounting Bolt Method | Threaded |
| Extended Depth (In.) | 15 |
| Extended Depth (mm) | 381 |
| Overall Width (In.) | 20.3 |
| Overall Width (mm) | 516 |
| Extended Height (In.) | 96 |
| Extended Height (mm) | 2438 |
| Number of Rack Units | 52 |
| Mounting Hole Thread Size | #12-24 |
| Rail Number Direction | Bottom Up |
| Static Load Capacity (kg) | 454 |
| Static Load Capacity (lb) | 1000 |
| Color | White |
| Finish/Coating | Powder-Coated |
| Part Features | Two Post Rack, 2 Post Rack, 2-post, Standard Rack, Tr Rack, Telco Rack |
| Part No. | R2P96WH |
Download PDF Spec Sheet
