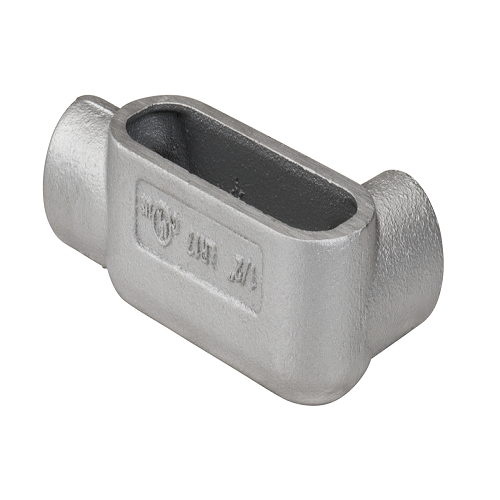

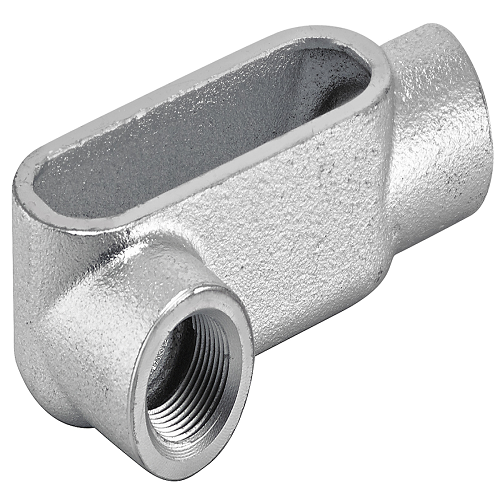

2" Form 7 Gray Iron LR Type Conduit Bodies LR6G7 (Pack of 3)

Product Information

Specification

About :

 The "2"" in its name indicates the size, meaning it's designed to fit 2-inch conduit systems. It is made from gray iron, a common material for conduit bodies due to its durability and strength. The shape of a conduit body can vary (such as LB, LL, LR, T, or C). Each style serves a different purpose, like facilitating pulls, splices, or changes in direction of the conduit run. The FM 7 will have a specific style that determines its best use.  The "FM 7" designation refers to the specific type or shape of the conduit body. This typically relates to the configuration of the openings and the overall shape, which in turn influences the applications it is best suited for.  Key features might include threaded openings, a cover and gasket for a secure and weatherproof seal, and smooth, rounded edges to protect wire insulation from damage.

Also known as:

Industrial Grade 2" Iron Conduit Body, 2-Inch Metallic Conduit Body, 2" Type FM7 Conduit Fitting, 2" Conduit Body, FM7 Series, Iron Construction.

Specification:

Material : Malleable Iron Material
Height : 4 Inch
Width : 3.1 inch
UPC : 751338869509

Features:

• NPT tapered hubs
• NEMA FB 1/NEMA 3R raintight when installed with cover and gasket
• Suitable for Class 1 Div. 2 hazardous locations when installed according to NEC 2014 501.10(B)(4)
