2 Fiber TeraGain 62.5µm Multimode OFNP Plenum PVC Dielectric Cable Orange 340026G01

Product Information

Specification

About :

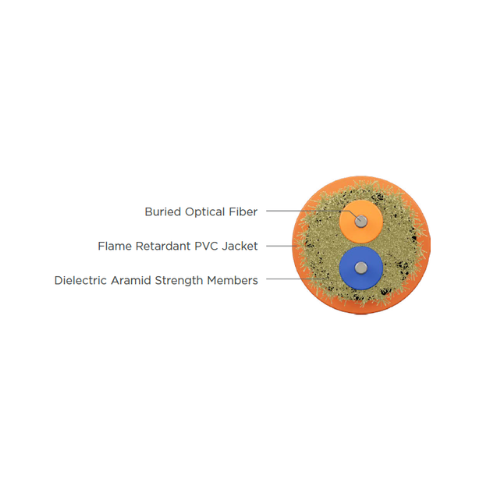

The design consists of flexible tight buffer material extruded over the fiber to a diameter of 900 μm for use with standard connectors. Dielectric yarns are applied for additional strength and a flame retardant PVC jacket covers the strength members. Appropriate materials are used to achieve an OFNR (riser) or OFNP (plenum) rating. Standard 2.9 mm and small form factor 2 mm diameters are available for simplex and duplex designs.

Also Known as :

2 Fiber Cable, Multimode OFNR Cable, Plenum Cable, Flame Retardant Cable, PVC Jacket Cable.

Performance Compliance:

• UL 1651
• CSA C22.2 No. 232
• UL 1666
• NFPA 262
• Telcordia GR-409-CORE, Issue 2
• ANSI/ICEA S-83-596
• ANSI/TIA-568.3-D

Sustainability:

• UL Certified EPD
• HPD
• USGBC Member
• RoHS-compliant/RoHS 2-compliant
• REACH-compliant

Applications:

• Cross-connects and patch applications
• Communication closets to wall outlets
• Drop ceiling and plenum air space applications

Benefits:

• Contributes toward 1 LEED point under the Material and Resources credit (MRc)
• Meets all the requirements for both standard and small form factor connectors for “in-frontof- the-shelf” applications
• Perfect for in-wall and “behindthe- shelf” applications
• Adjustable tension control on reel prevents over spin and entangling of cable

Features:

• Simplex and duplex zip cord designs in 2 mm and 2.9 mm diameters
• Round, duplex and quad designs
• BrakeBox payout control system

Specifications:
