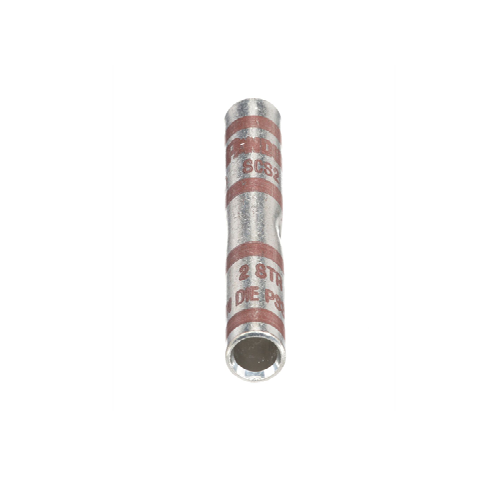

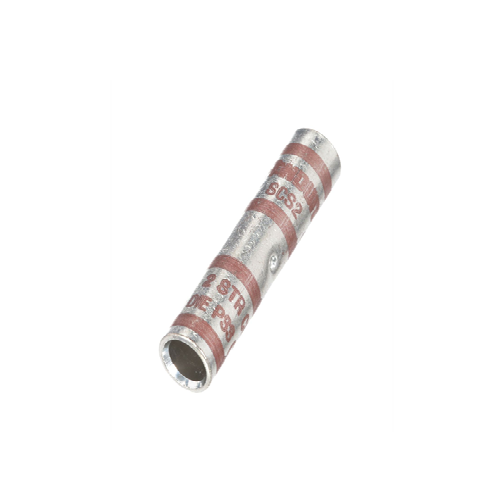

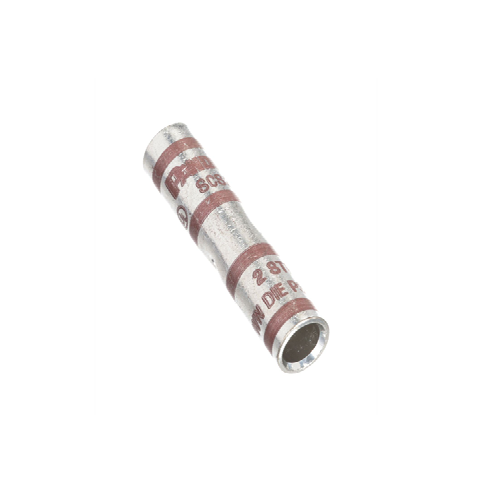

2 AWG Compression Splice Tin-Plated Copper Standard Brown SCS2-Q (Pack Of 25)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
| Product Type | Compression Splice |
| Sub Brand | Pan-Lug |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Type | Standard |
| Maximum Voltage (kV) | 35 |
| Base Material | Copper |
| Standards Met | UL-listed and CSA certified for use up to 600V & Temperature-rated to 90°C |
| Finish/Coating | Tin-Plated |
| Color Code | Brown |
| Burndy Die Index Number | 10 |
| Panduit Die Index Number | P33 |
| Overall Length (In.) | 1.87 |
| Overall Length (mm) | 47.49 |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
| UL Temperature Rating (°C) | 90 |
About
The SCS2-Q Copper Compression Lug, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids visual confirmation of full conductor insertion, and the tin-plate material helps inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90°C.
Features
• Color-coded barrel, internal wire stops, tin-plated to inhibit corrosion, NEBS Level 3
