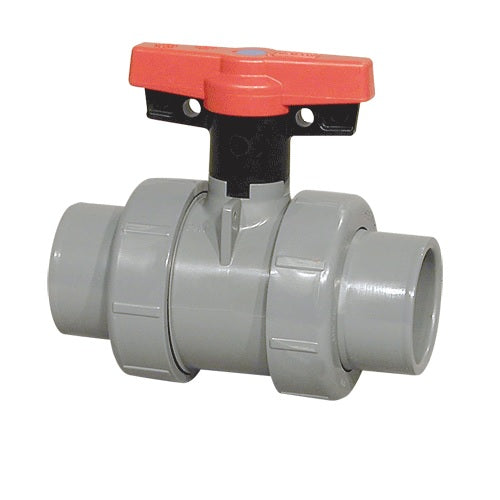

2" 2000 Industrial Socket Ends True Viton O-rings CPVC Union Ball Valve 1839V-020C

Product Information

Specification

Ball Type	Standard
Connection Type	Socket
Operator	Locking Handle
O-Ring Material	Viton
Series	2000 Industrial
Size	2"
Type of product	True Union Ball Valve
Ball Material	CPVC
Body Material	CPVC
Part Number	1839V-020C

2" 2000 Industrial Socket Ends True Viton O-rings CPVC Union Ball Valve 1839V-020C

Description

True Union 2000 Ball Valves, 3-Way Ball Valves, and Ball Check Valves provide maximum versatility with fully interchangeable valve cartridges. Provides for easier system design modifications and upgrades in multi-phase projects, or anywhere changes in valve types are desired. Simply exchange any True Union 2000 valve in-line using existing Union nuts. Also mates with Spears new Schedule 80 Unions and Diaphragm Valves. All True Union 2000 valves feature a low profile, compact design for minimal space requirements. Available in PVC or CPVC with choice of EPDM or FKM O-ring seals and socket, threaded, flanged, spigot, or optional Spears patented Special Reinforced (SR) threaded end connectors. Additionally, Spears offers valve Retrofit Kits for easy in-line replacement of other valves and factory-installed Actuation Packages. Assembled with silicone-free lubricant.

Features

• Multi-featured Industrial Grade
• Built-in Handle Lockout
• Fully Serviceable, Replaceable Components
• Safe-T-Blocked Seal Carrier - Full-Rated Pressure
• ISO Pattern Actuation Mounting Option
• Spears Dual O-ring Safe-T-Shear Stem
• Self-Adjusting PTFE Floating Seat Design
• Sizes 1/2" - 4" pressure rated to 235 psi  73° F, sizes 6" - 8" and all flanged to 150 psi  73° F
• EPDM NSF Certified for Potable Water Use
• Also Available in SPEARS Low Extractable High Purity, PVC Material
• Produced in IPS sizes 1/2" - 6" with Socket, Threaded, Flanged, Spigot, or SR Threaded End Connectors
• 8" with Socket and Flanged End Connectors
