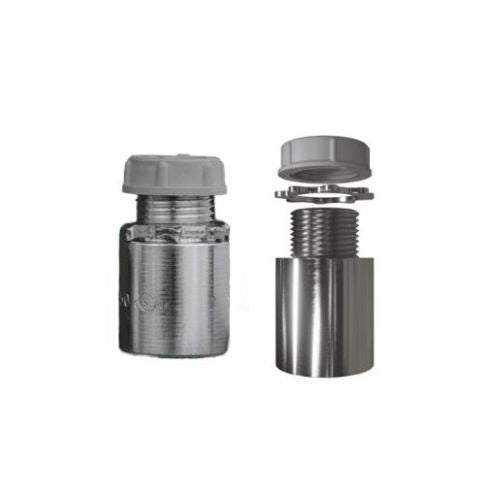

2-1/2" Non Water Tight Thread MC Connector NWT257250F

Product Information

Specification

About :

Remove enough jacket and armor from the end of the cable to allow wire leads long enough to make connections to equipment. Remove sufficient amount of jacket to allow for making a good grounding bond of the armor to connector. Screw connector body onto the end of the cable making sure it is tight enough to make a good bond. Without removing the male hub and hub nut from connector, loosen the hub nut and screw the male hub into a threaded entrance on the equipment. With channel locks tighten hub and then tighten hub nut on connector.

Specifications :

Armor ( Min ) : 2.46
Range ( Max ) : 2.57
Trade Size : 2-1/2"
NPT Thread  O.D : 2.88
NPT Thread Length : 1.57
Stock Dia : 3.250
Outer Part Length : 2.51
Overall Length : 4.08
Part Number : NWT257250F

Features :

• 360 Degree Hand-tight Grounding

• High Pull Out Resistance

• Environmentally Friendly

• Standard Stock: 6061 Aluminum

• Special Materials: Brass, Stainless Steel
