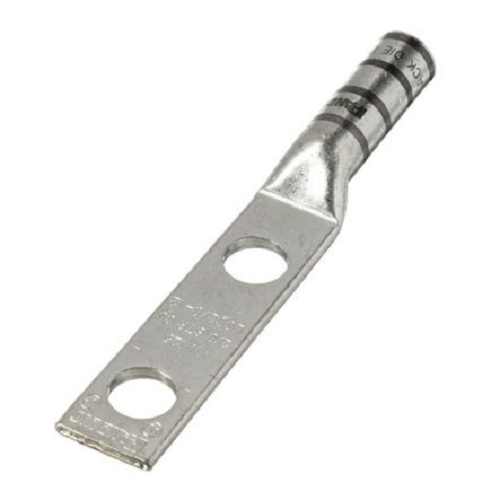

2/0 AWG Copper Compression Connectors Lugs Black LCC2/0-12-X (Pack of 10)

Product Information

Specification

About:

• 2/0 AWG Copper Compression Connectors Lugs are high-quality electrical connectors designed for connecting large gauge copper conductors. These lugs ensure reliable and efficient electrical connections in various industrial, commercial, and residential applications. The 2/0 AWG size refers to the American Wire Gauge standard, indicating a conductor diameter suitable for handling substantial electrical loads.
• Made from high-conductivity copper, these lugs provide excellent electrical conductivity and ensure minimal energy loss. Often tin-plated to resist corrosion and provide long-term durability in harsh environments. Features a flared or chamfered barrel entry for easy wire insertion and a secure connection.
•  2/0 AWG Copper Compression Connectors Lugs are essential components for creating strong, reliable electrical connections in various high-current applications. Their high conductivity, durability, and ease of installation make them a preferred choice for professionals in the electrical and construction industries.

Also Known As:

2/0 AWG Copper Lugs, 2/0 AWG Compression Lugs, 2/0 AWG Copper Crimp Lugs, 2/0 AWG Cable Lugs, 2/0 AWG Copper Terminal Lugs, 2/0 AWG Crimp Connectors, 2/0 AWG Copper Eyelets, 2/0 AWG Wire Terminals, 2/0 AWG Copper Cable Connectors, 2/0 AWG Copper Compression Terminals, 2/0 AWG Electrical Lugs, 2/0 AWG Copper Battery Lugs, 2/0 AWG Lug Connectors, 2/0 AWG Copper Conductor Lugs.

Specification:

Features:

• Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V.
• Color-coded barrels marked with Panduit® and specified competitor die index numbers for proper crimp die selection.
• Inspection window to visually assure full conductor insertion.
• Tin plated to inhibit corrosion.
• Wide wire range-taking capability when crimped with Panduit® Uni-Die ™ dieless crimping tools.
• UL listed and CSA Certified for wide wire range taking capability when crimped with Panduit® uni-die dieless crimping tools.
• 1-1/2 in barrel length.
• P45 die index.
• 1-9/16 in wire strip length.
• Straight tongue angle.
• Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 VAC.
• 1-3/4 in stud hole spacing.
