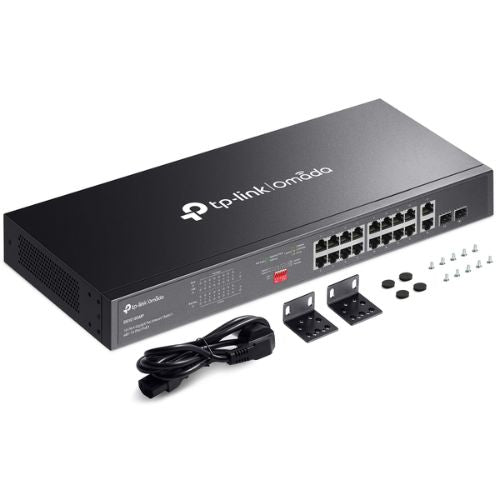

18-Port Gigabit Rackmount Omada Unmanaged Switch with 16-Port POE+ DS1018GMP

Product Information

Specification

Description

18-Port Gigabit Rackmount Omada Unmanaged Switch with 16-Port POE+

Features

• High POE power budget with up to 30 W for each POE port and 250 W for all PoE ports.
• Working with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode
• Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor.
• 16× Gigabit POE+ RJ45 ports and 2× Combo Gigabit SFP slots
• Isolation Mode allows one-click client traffic separation for higher security and performance.
• POE Auto Recovery guarantees stable operation of POE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required.

Specification

Model: DS1018GMP
Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q
Switching Capacity: 36 Gbps
Packet Buffer Capacity: 4.1 Mbit
External Power Supply: 100–240 VAC, 50/60 Hz
Max Power Consumption: 293.3 W
Physical Security Lock: Yes
Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in
Installation: Desktop/Rack Mountable
