170 Tie-point Solderless Plug-in Breadboard BB170

170 Tie-point Solderless Plug-in Breadboard BB170

Description:

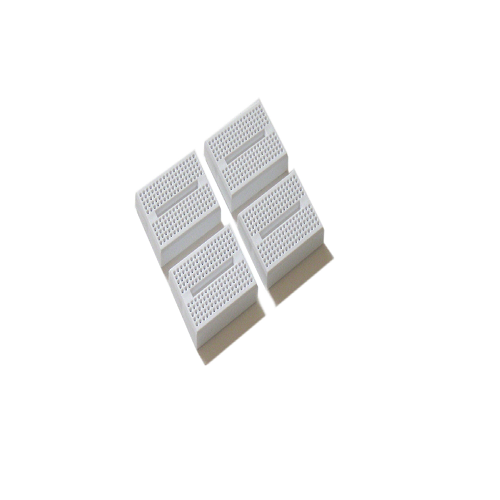

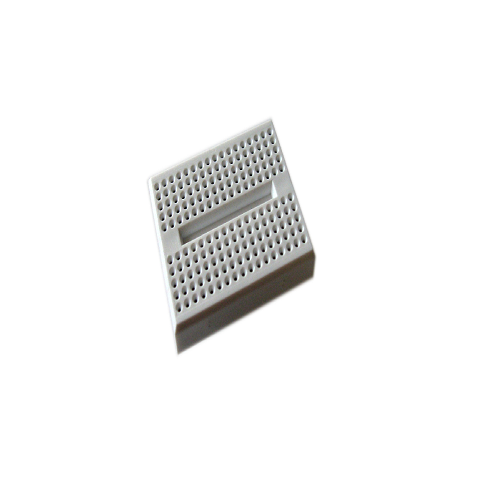

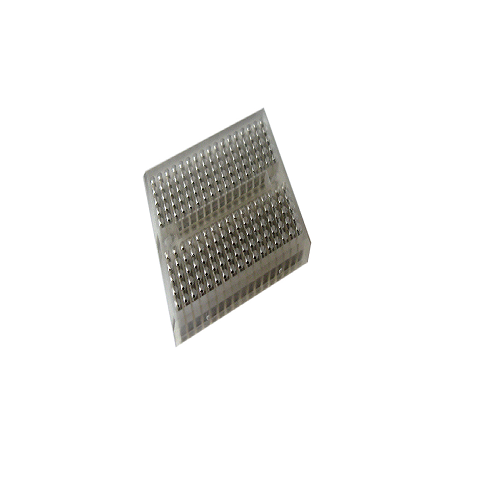

BreadBoard-170 is a solderless (plug-in) breadboard with 170 connection tie-points (i.e. 170 wire insertion holes). Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB170 has a 170 tie-point IC-circuit area. The housing is made of white POM plastic, (ABS plastic for the transparent model). The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant.

Features:

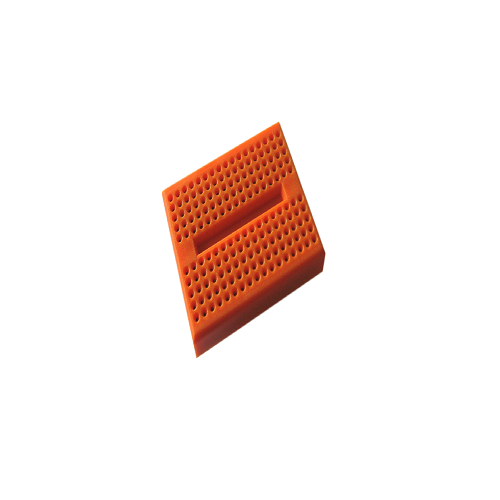

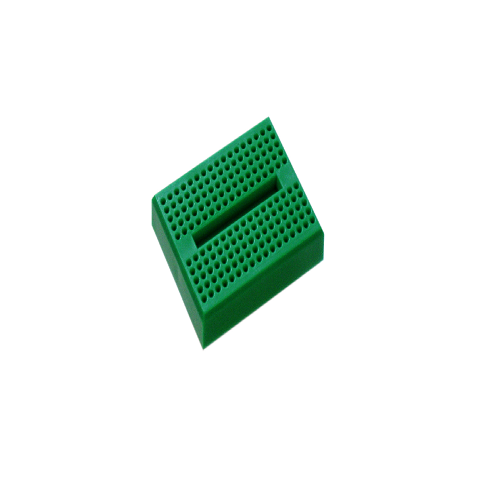

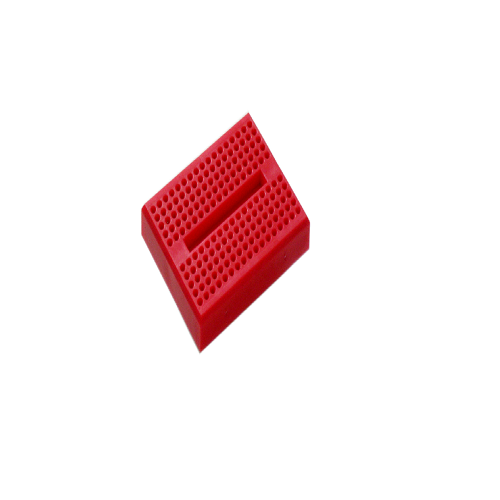

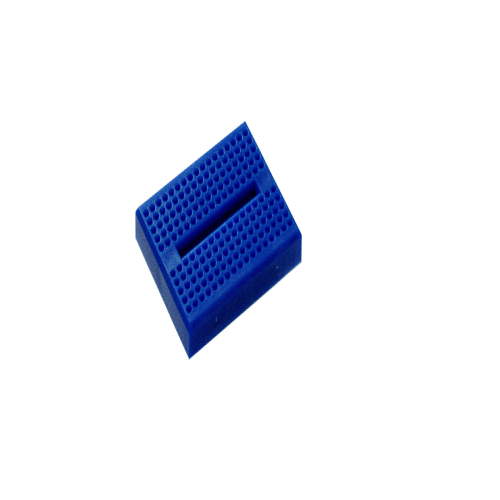

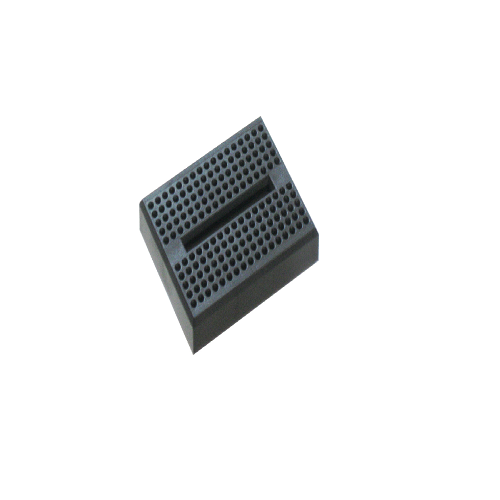

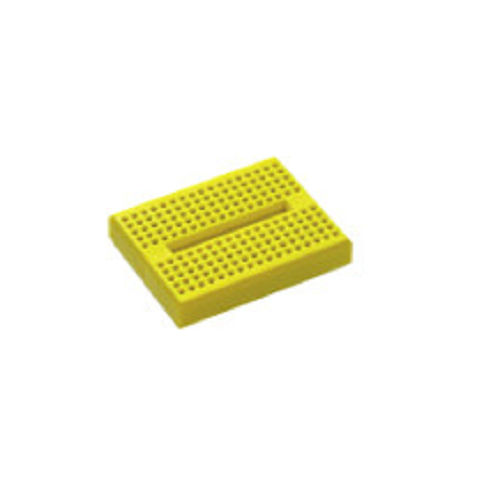

• 170 tie-point IC-circuit area. 8 colors available.
• Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
• Rated at 36 Volts, 2 Amps.
• Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
• Peelable adhesive tape backing provided for attaching to a surface.Two mounting screws.
• Size: 1.8 x 1.4 x 0.4in (45.7 x 35.6 x 9.4mm).
