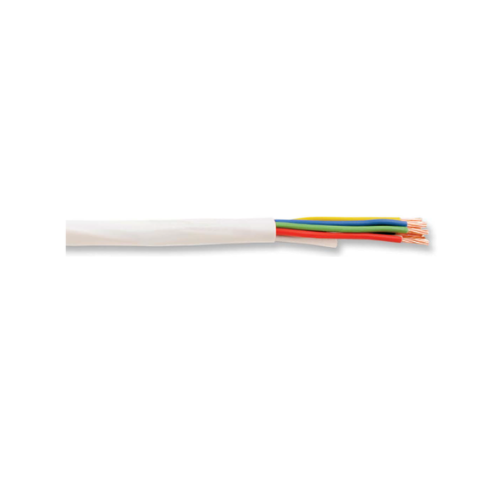

16 AWG 2 Conductor PVC Jacket Security Control Unshielded Plenum Cable White 2FD1443 1000' Reel

Product Information

Specification

About :

Security Control cables are used for a variety of building control and audio applications. The non-shielded security control cable series is ideal for environments where electromagnetic interference (EMI) is not a concern or the cable is not required to be grounded. All plenum listed security control cables provide compliance to NEC Article 725, NEC Article 760, CL3P and FPLP. All security control cables are power limited rated for 300V.

Also Known as :

2 Conductor Count, 16 AWG Cable, Unshielded Security Cable, Non-Shielded Security Cable, Nonshielded Security Cable, Plenum listed cable.

Performance Compliance:

• UL 13 CL3R/CL3P
• UL 444 CMR/CMP
• UL 1424 FPLR/FPLP
• UL 1666
• NFPA 262
• California State Fire Marshall
• RoHS-compliant/RoHS 2-compliant

Applications:

• Intercom
• Security
• Audio, public address system, speakers
• Burglar alarm system
• Telephone stations
• Background music
• Sensors

Benefits:

• Simplifies selection with multiple listings (CL3P, CMP and FPLP)
• Easy to open; saves cable preparation time
• Allows both ends of a cable run to be easily identifiable without the need to separately label or tone the cable
• Provides remaining length of cable on spool resulting in less scrap
• Robust and easy to handle

Features:

• Plenum rated
• Jacket rip cord
• CableID alpha numeric code printed every 2 feet
• QuickCount marking system in feet and meters
• Black, plastic recyclable spool packaging (standard)

Specifications:
