16-12 AWG Pan-Term Terminal Ring PN12-14HDR-D (Pack of 500)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specification :
| Product Type | Ring Terminal |
| Stud Size | 1/4" |
| Maximum Copper Conductor Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Sub Brand | Pan-Term |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Barrel Type | Grip Sleeve |
| Base Material | Copper |
| Barrel Length (In.) | 0.62 |
| Barrel Length (mm) | 15.7 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Insulation Material | Nylon |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Flammability Rating | UL94V-2/UL94-HB |
| Overall Length (mm) | 31.5 |
| Overall Width (mm) | 13.2 |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH) |
| Part No. | PN12-14HDR-D |
Description:

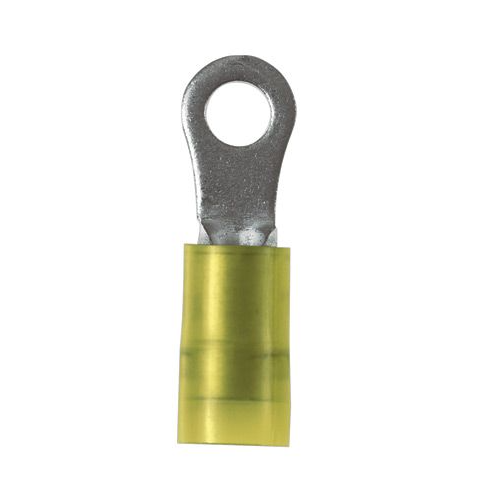

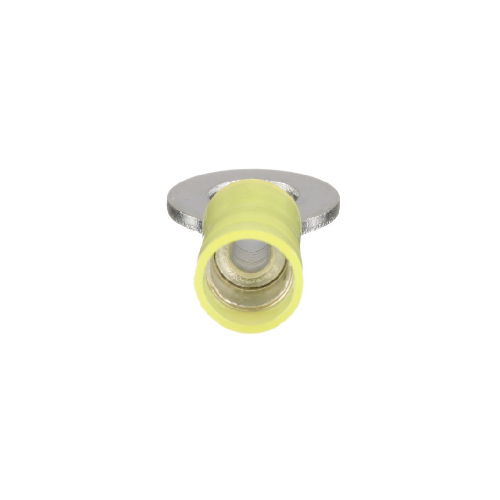

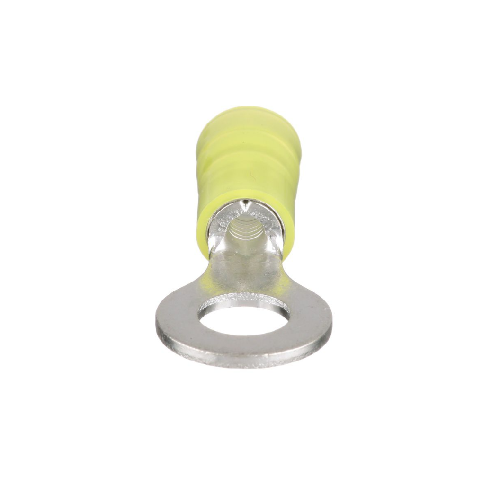

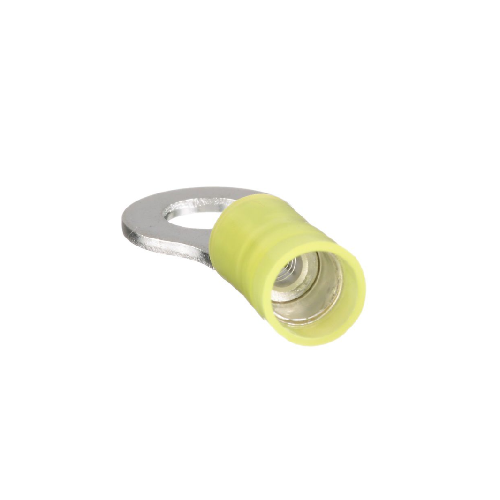

Ring Terminal, 16-12 AWG, 1/4" stud size, heavy duty, nylon insulated, bulk package.
Part Features
• Insulation housing is marked with “HDR” to signify heavy-duty ring
• Manufactured from stock 56% thicker than a standard #16 – #14 AWG terminal for use in heavy-duty applications
• Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
• Ring tongue design assures a secure connection in high vibration applications
• Internal barrel serrations assure good wire contact and maximum tensile strength
