| Type | COAX Stripper |
|---|---|
| UPC | 811490017627 |
| Cable Type | COAX |
| Cable Size | RG59 and RG6 |
| Strip Length | Braid: 0.591" (15 mm), Center Conductor: 0.236" (6 mm) |
| Dimensions | 4.26 in x 1.19 in x 1.69 in |
| Part Number | CSS-5156 |

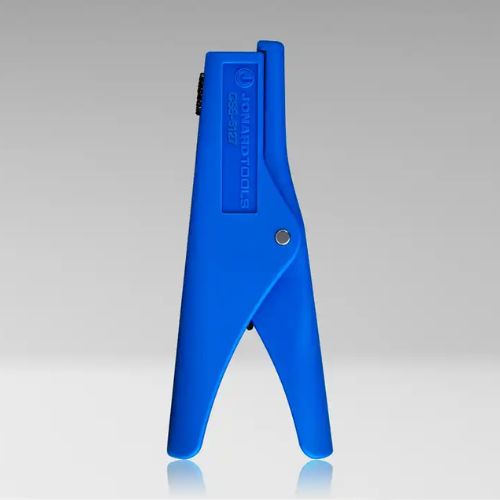

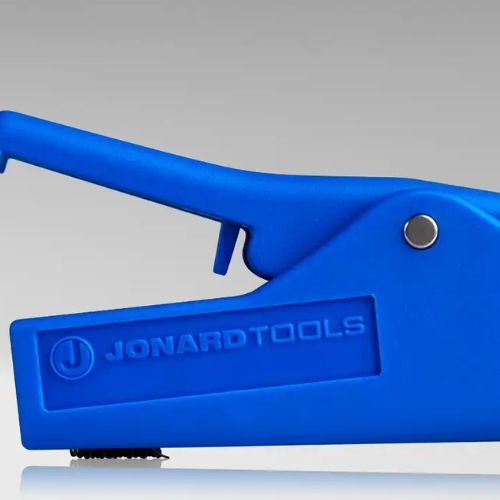

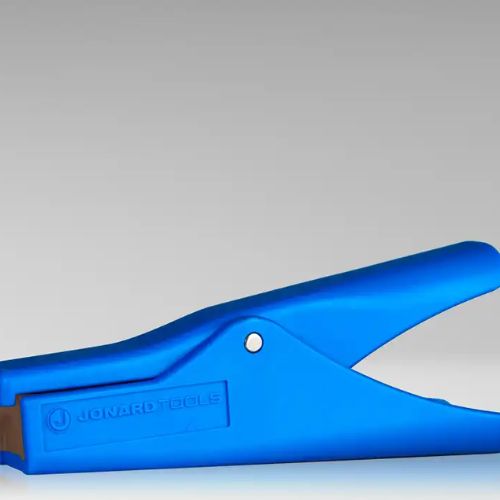

15 mm and 6 mm COAX Cable Stub End Stripper
Description:
The CSS-5156 coaxial cable stripper is designed to strip the stub end of a coaxial cable in wall outlets, exposing 15 mm of braid and 6 mm of center conductor, eliminating the need to run new cable.
Features:
⦿ Easy to use: Insert the cable, rotate like a screwdriver, and remove to strip
⦿ Cable-safe design: Does not cut or damage braid or score the center conductor
⦿ Long-lasting blades: High-carbon steel blades provide over 5,000 strips per side
⦿ Braid management: Hook-and-loop strip folds back cable braid after stripping
⦿ Versatile compatibility: Compatible with CSS blade cartridges 105/110/115/120/125/135
⦿ Replacement cartridge: CSS-130
Blade Replacement Instructions:
⦿ Remove old blade cartridge: Open jaws and push upward on the front of the cartridge to lift it out
⦿ Install new cartridge: Insert the cartridge into the tool, close the jaws, and squeeze to ensure the blade locks securely
