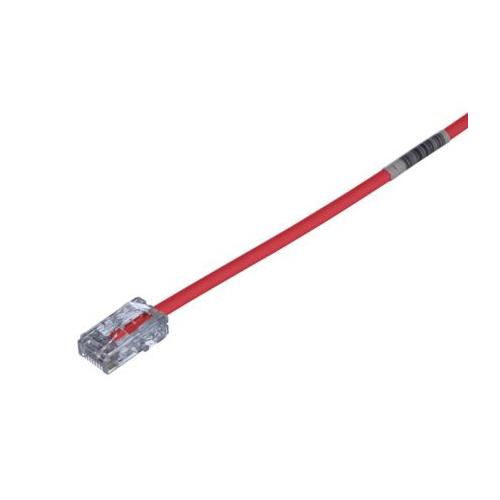

15 FT 28 AWG UTP Copper Patch Cord Red UTP28CH15RD

Product Information

Specification

About:

• The TX5e Cat 5e UTP Patch Cord is a 15-Foot, 0.150-inch (3.8mm) diameter, Red cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM cable with Pan-Plug modular plugs.
• Its compact 28 AWG design simplifies installation and management.
• The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes.
• Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Also Known As:

Patch Cord, Patch Cable, Ethernet Cable, Network Cable, LAN Cable, Twisted Pair Cable, UTP Copper Patch Cord.

Specification:

• Product Type: Patch Cord
• Conductor Gauge (AWG): 28
• Conductor Gauge (kcmil): 0.16
• Performance Level: Category 5e
• Conductor Type: Stranded
• Cable Construction: U/UTP
• Patch Cord Type: Unshielded
• Plug Housing Material: Polycarbonate
• Jacket Material: LSZH Material
• Connector 1 Type: Modular Plug
• Connector 2 Type: Modular Plug
• Overall Length (ft): 15
• Sub Brand: Pan-Net
• Nominal Cable Outside Diameter (In): 0.149
• Wiring Scheme: T568A
• Maximum Operating Temperature (°F): 140
• Minimum Operating Temperature (°F): 14
• Boot Color: No Boot
• Color: Red
• Flammability Rating: Dual Rated (CM/LSZH)
• Plug Type: 8 Position
• UPC: 07498348626

Features:

• 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch
• 28 AWG indicates the gauge or thickness of the copper conductors inside the cable
• A higher AWG number (like 28 AWG) means thinner conductors, which can make the cable more flexible and lightweight
• UTP cables are the most common type of Ethernet cables, consisting of four twisted pairs of copper wires without additional shielding
• Constructed to be flexible yet durable, allowing for easy installation and handling.
