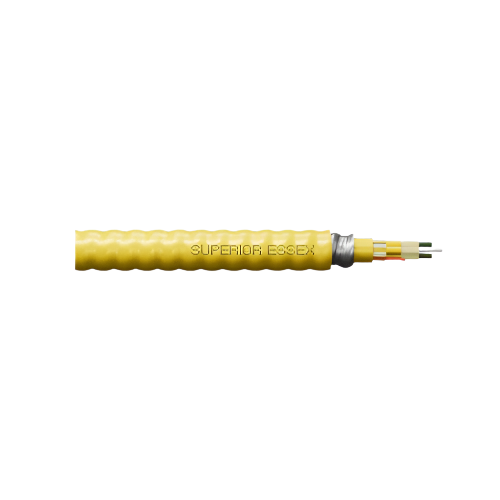

144 Fiber OFCP OS2 Singlemode Interlock Armored 2mm Microarray Breakout Cable Yellow L4144KV01

Product Information

Specification

About:

The Interlock Armored Microarray Breakout cable designed for high performance with robust mechanical protection. The premises loose tube design consists of 12-fiber 2 mm microarray interconnect cable subunits, each of which contain twelve 250 micron fibers. The aramid yarns inside the subunit allow the subunit to be crimped directly onto an MTP/MPO connector. The 2 mm subunits are stranded around a central strength element that is both flexible and robust enough to pass backbone installation requirements. The stranded subunits are held to the strength element core by binder yarns and/or tapes ensuring excellent temperature performance. A RoHS-compliant flexible jacket protects the core while providing fire protection. Finally, the cable is interlock armored with aluminum and jacketed.

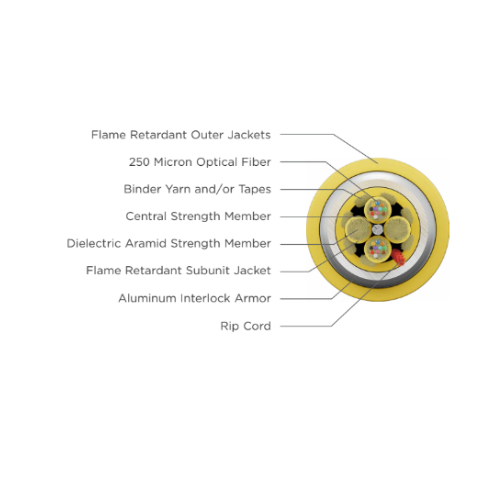

Subunit Configuration: 2 mm simplex loose tube cable with twelve 250 micron optical fibers surrounded by dielectric aramid strength members
Cable Configuration: 2 mm loose tube subunits around a central strength member
and surrounded by polyester yarns and an outer jacket
Subunit Marking: Unit 1, Unit 2, Unit 3, Unit 4
Central Strength Element: Glass Reinforced Plastic (GRP) covered with a PVC jacket
Armor: Flexible, heavy duty interlocking aluminum tape helically applied over the inner cable core; further protection is provided by a FR outer jacket

Also Known as:

144 Fiber Plenum Cable, TeraFlex Bend Resistant G.657.A1, Singlemode Optical Fiber Cable, Non-Riser Singlemode, OS2 Plenum Cable, 2 mm Microarray Cable.

Applications:

• 10 Gb, 40 Gb, 100 Gb Ethernet and legacy speeds
• Data centers and other high density installations
• Trunk applications
• MTP/MPO array connectors
• Outside plant (OSP) to premises transitions

Benefits:

• Contributes toward 1 LEED point under the MRc
• Connects directly to MTP/MPO 12-fiber array connectors
• Worry-free installation and performance
• Provides exceptional mechanical protection and crush resistance
• Meets NEC requirements

Features:

• UL Certified Environmental Product Declaration (EPD)
• Health Product Declaration&trade (HPD)
• 12-fiber 2 mm loose tube interconnect subunits
• Meets or exceeds ICEA 83-596-2001 and GR-409-CORE requirements for interconnect subunits and trunk cable
• Interlock armor
• Plenum (OFCP) rated design

Specifications:
