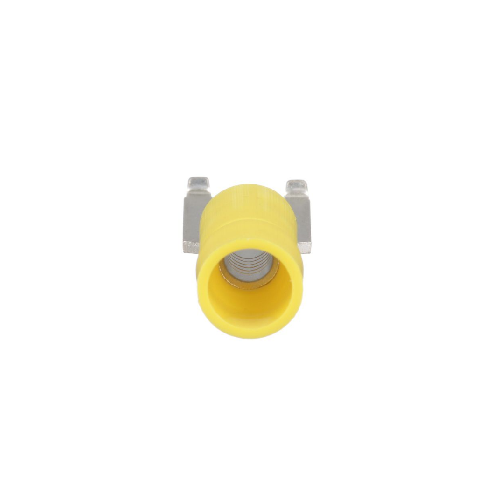

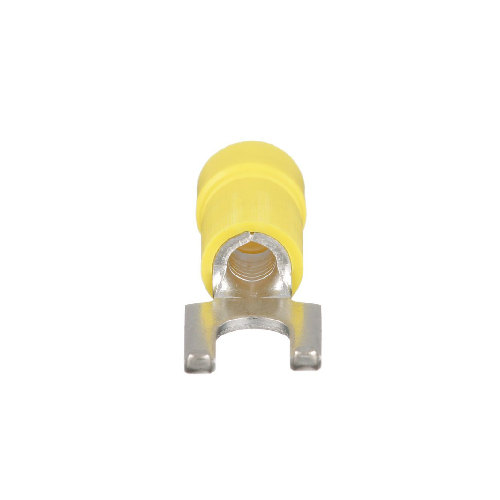

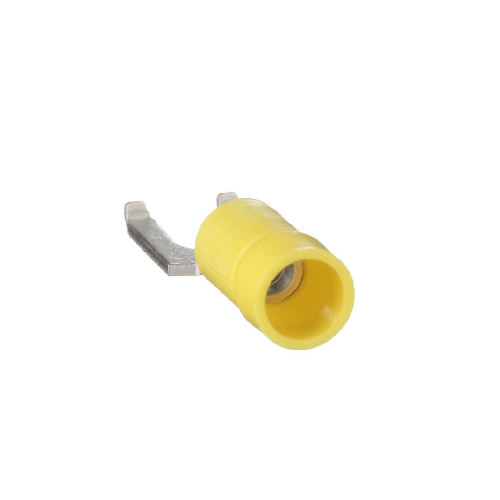

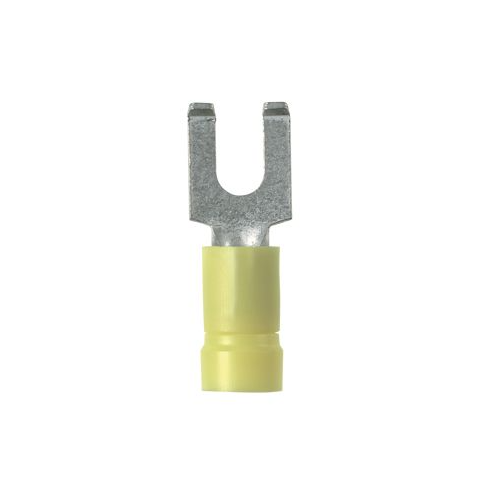

14-10 AWG Pan-Term Flanged Terminal Fork PV10-10FF-L (Pack Of 50)
Where are we? 4 Continents 9 Countries
Got any Questions?
Speak with a real person who will go out of their way to help you!
Call Us: 1-516-482-6313Text Us: 1-516-703-3460
Quick Support
Product Information
Specification
Specifications:
| Product Type | Ring Terminal |
| Stud Size | #10 |
| Maximum Copper Conductor Size (AWG) | #10 |
| Minimum Copper Conductor Size (AWG) | #14 |
| Sub Brand | Pan-Term |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Base Material | Copper |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Insulation Material | Vinyl |
| Barrel Length (In.) | 0.39 |
| Barrel Length (mm) | 9.9 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Flammability Rating | UL94V-0 |
| Overall Length (mm) | 26.2 |
| Overall Width (mm) | 9.4 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Part No. | PV10-10FF-L |
Description:
Flanged Fork Terminal, vinyl insulated, funnel entry, 14 - 10 AWG, #10 stud size.
Part Features
Fork design provides for fast and easy installation, without the need to remove fastener. Flange design provides extra secure connection on a variety of applications. Insulation support helps to prevent wire damage in bending applications. Internal barrel serrations assure good wire contact and maximum tensile strength.
