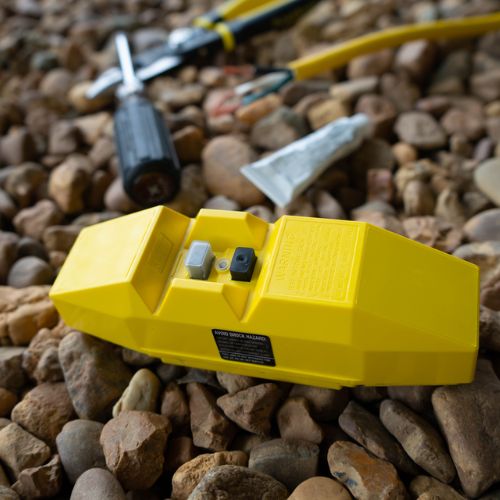

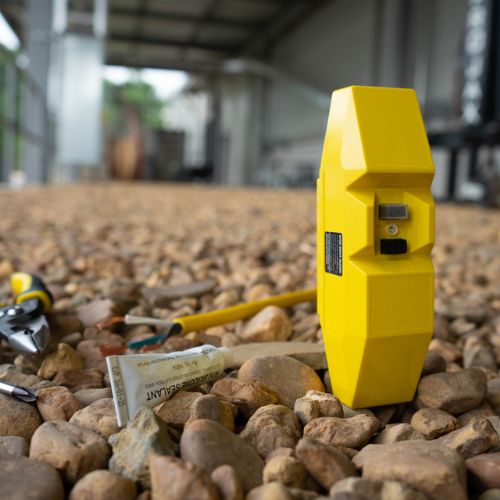

120V/20 Amp Inline GFCI Manual User Attachable Yellow 25230001-6 (Pack of 6)

Product Information

Specification

About :

The in-line user attachable is ideal for existing equipment without GFCI protection, and can be easily attached by connecting the GFCI in series with the supply cable, 9 to 10 inches from the plug end, to provide GFCI protection.

Also known as :

GFCI Plug, User Attachable Plug, GFCI Plug, 20A GFCI Plug, 20A Inline GFCI Plug.

Specification :

• Amperage: 20A
• Voltage : 120V
• Dimensions: 5.08" H X 5.08" W x 17.78" D
• Color: Yellow
• UPC: 024098902077
• Part Number:  25230001-6

Features :

• Applications Include: Pressure Washers, Drain Snakes, Floor Cleaners, Industrial • • Appliances, Power Tools, Pumps, Boat Lifts, Extension Cords
Grounded Neutral: 4 Ohms Typical
• Trip Response Time for Ground Fault and Grounded Neutral Trip: Less Than 25mS and grounded neutral trip
• Radio Frequency Noise Susceptibility: Operates Within Normal Limits With 0.5 Volts
• Injected On Power Line 150Khz-230Mhz
• Effect of 10 Amp Turn DC Shock Fault Trip: 5% Maximum Trip Level Variation on Ground
• Endurance: 3,000 Operations Minimum
• Overload Current: Six Times Rated Current
• Insulation Voltage: 1500 Vrms - 1 Min.
• Cord Gauge: Accepts 16 - 12 AWG (ST)
• Power On Indication: Mechanical Indicator
