| Type | COAX Stripper |
|---|---|
| UPC | 811490019010 |
| Cable Type | COAX |
| Cable Size | RG59 and RG6 |
| Strip Length | Braid: 0.472" (12 mm), Center Conductor: 0.276" (7 mm) |
| Dimensions | 4.26 in x 1.19 in x 1.69 in |
| Part Number | CSS-5127 |

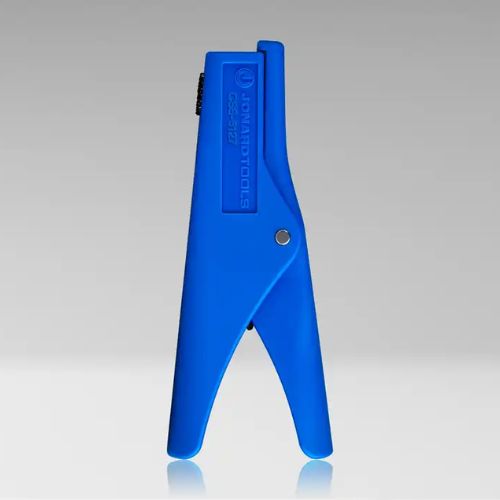

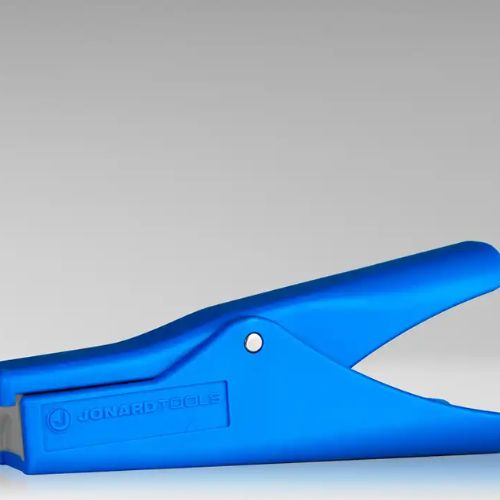

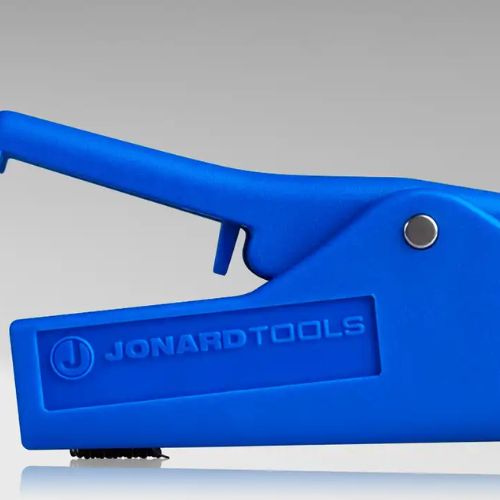

12 mm and 7 mm COAX Cable Stub End Stripper
Description:
The CSS-5127 is a coaxial cable stripper designed to prepare the stub end of a coax cable in a wall outlet by exposing 12 mm of braid and 7 mm of the center conductor, eliminating the need to run new cable.
Features:
⦿ Easy-to-use cable stripper: Insert the cable, rotate like a screwdriver, and pull off to strip
⦿ Safe, precision stripping: Does not cut, nick the braid, or score the center conductor
⦿ Durable high-carbon steel blades: Rated for 5,000+ strips per blade side
⦿ Built-in hook-and-loop strap: Allows quick folding back of cable braid after stripping
⦿ Interchangeable blade compatibility: Works with CSS-105, CSS-115, CSS-120, CSS-125, CSS-130, and CSS-135 cartridges
⦿ Replacement blade cartridge: CSS-110
Blade Replacement Instructions (Simplified):
⦿ Open jaws and push up on the front of the cartridge to remove
⦿ Insert new cartridge, close jaws, and squeeze firmly to lock in place
